50kg laundry washing machine commercial laundry equipment for hotel factory school

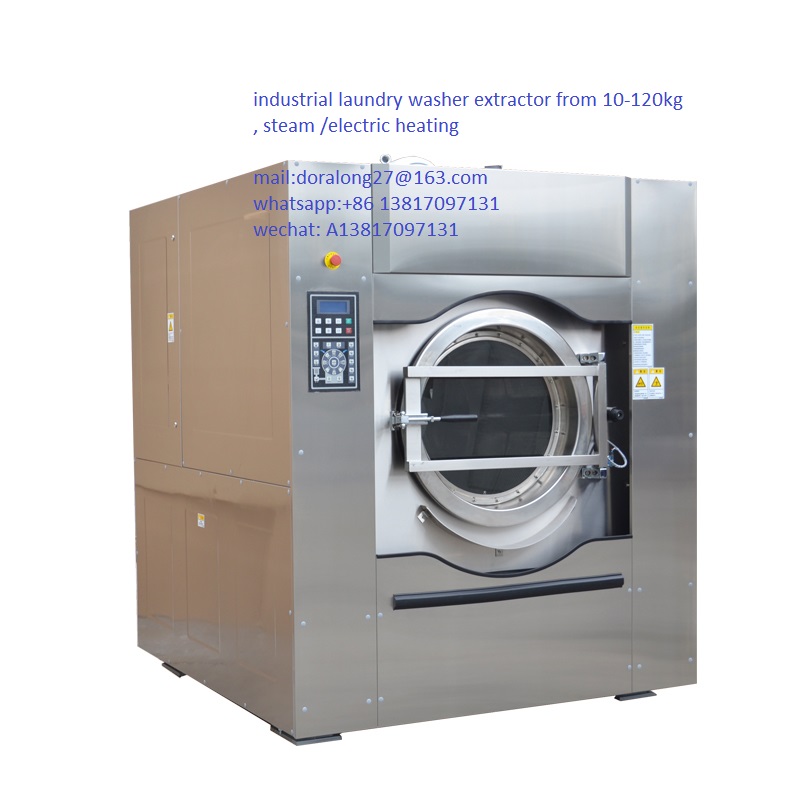

XGQ-30F/50F/100F/130F/150F Soft Mounted Automatic Washer Extractor
*Full suspension structure,which effectively isolate the vibration during washing;
*This machine is a fully enclosed rear drainage frame structure with no pollution;
*Basket and extermal plates are made of high grade stainless steel material for durability and anti-corrosion.

doralong27@163.com whatsapp:+86 13817067131 wechat:A13817097131 contact with Dora


Technical Parameter
Totally 5 models out of 15 machines size from minimum 15kg dry load capacity to the maximum 150kg.
Model Unit XGQ-30F XGQ-50F XGQ-70F XGQ-100F XGQ-120F
Capacity kg 30 50 70 100 120
Basket size mm Φ905*500 Φ1065*628 Φ1200*600 Φ1230*800 Φ1300*900
Washing speed rpm 40 38 38 38 38
Extracting speed rpm 750 720 700 650 630
Motor power kw 4 5.5 7.5 7.5 11
Inverter power kw 5.5 7.5 11 11 15
Steam ratio kg/kg 0.7 0.7 0.7 0.7 0.7
Water pipe Inch 1.5 1.5 2 2 2
Steam pipe Inch 1 1 1 1 1
Soap pipe Inch 3/4 3/4 3/4 3/4 3/4
Steam pressure Mpa 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Water pressure Mpa 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3 0.2-0.3
Dimension cm 140*138*176 160*160*210 175*154*214 180*195*230 180*195*230
Weight kg 1450 2200 2800 3200 4300
Note:The above specifications are subject to change without notice.
