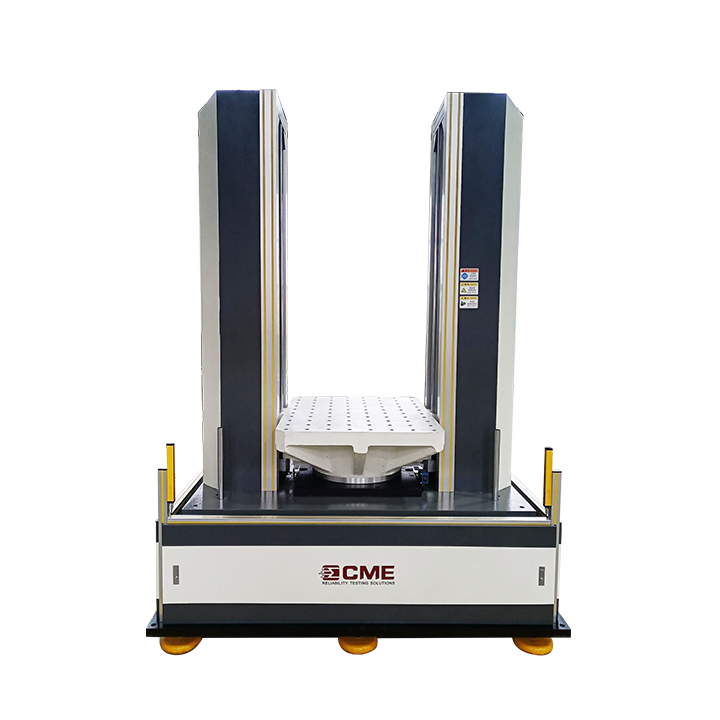

Pneumatic vertical shock test system

KRD11 series pneumatic vertical shock test system is suitable for evaluating the functional reliability and structural integrity of various products under shock or bump environments, thereby improving or optimizing the structural design or layout of the products. The system meets the requirements of both shock and bump test, can perform conventional half-sine wave, post-peak sawtooth wave, trapezoid wave and other waveform shock tests.

l  Pneumatic drive, simple structure and high reliability

l  Pollution free, without hydraulic leak risk and keep the environment clean.

l  Pneumatic drive greatly improves the shock test efficiency, maximum shock rate up to 120 times/ min.

l  It can easily realize large pulse width and small overload test.

l  With a fast shock rate comparing to motor or hydraulic driven table, it has higher reliability and better bump waveform.

l  The speed and rate of shock can be easily controlled by adjusting the gas pressure.

l  IPS-2000 shock control and measurement system can perform manual shock, continuous shock, single shock, and interval shock.

l  Built-in brake mechanism ensures the safety of operation in any situation.
