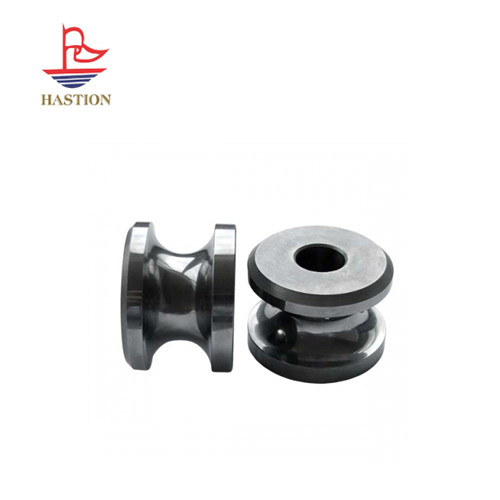

titanium carbide roller guides ceramic TiC guide wheel on steel rolling mill machinerytitanium carbide roller guides ceramic TiC guide wheel on steel rolling mill machinery, GT35
For the rolling mill, guide rollers (also called ring rollers, guide wheel) is an indispensable part of wires export in the wires
rolling process, it must be accorded with the requirements of high rigidity, good wear resistance (the service life is matched with the high-quality bearing), good thermal conductivity, a certain of red hardness, especially the high speed wires rolling (rolling speed is among 80-120m/s). In the current market, most of the guide wheels are manufactured by steel materials (especially in the domestic market), which have the weak wear resistance, short service life and high frequency replacement, so the scale benefit of wire materials is restricted. However, steel-bonded cemented carbide has the obvious strengths on this aspect.
2. Product Application
2.1 Lighter than Tungsten carbide roller by 55%, Lighter than tool steel than 20%, so the guide roller accelerates from standstill to 35,000 rpm, without damaging the bearing.
2.2 Very low coefficient of friction and self-lubricating properties, so the working portion of the guide roller is less worn, and the production can be greatly increased.
2.3 The coefficient of thermal expansion is close to that of the bearing steel. When the quenching is hot, the bearing will not get stuck. The thermal expansion coefficients of titanium carbide cemented carbide and tungsten carbide hard alloy are very different from those of steel. Therefore, the steel bonded carbide guide roller is more advantageous for bearing anti-seize ability than the two cemented carbide guide rolls.
2.4 The micro structure is titanium carbide and high chromium tool steel, which has good thermal fatigue resistance.
2.5 Anti-oxidation, less magnetic, non-stick steel.
2.6 Annealing hardness is only HRC45-48, easy to process, after quenching, only a little fine grinding can be processed into finished products, the processing cost is low, so the price is also low. This is also one of the main reasons why titanium carbide guide rolls are superior to tungsten carbide guide rollers.
2.7 Hardness HRC62-67, good wear resistance. The service life is 8-10 times that of high speed steel.
2.8 Absolutely dense, the pores are almost zero, so it will not break when used and can be reused.
2.9 Compared with similar foreign products, the price of Miller MT10 is lower, which greatly saves the production cost of
3. The advantage of Economic Cost (Common guide wheel (Cr12MoV) VS TiC Guide Wheel)
Packing & Delivery
1. Package Details(Metal Powders and TiC Rod/Insert/Plate Products)
Samples: by vacuum plastic bag firstly, then Carton.
Productions: by steel drums, then packed by pallet.
2. Shipping Method
By international express(DHL,FEDEX,TNT or others) / by sea / by air
We could do different package methods according to customers' requirements.
1. HASTION Introduction
Zhuzhou Hastion High-tech Materials Co., Ltd.(short for HASTION) is located in Yanling Small and Medium Enterprise Pioneer Park in Zhuzhou City, Hunan Province, which is covering an area of 60,000 square meters and a planned factory area of 50,000 square meters. Now HASTION have 2 different productions lines, one is the raw material metal compound and elemental powder(TiC/Cr3C2/VC/NbC/ZrC/HfC/(W,Ti)C/(Ta,Nb)C and so on), the other one is the titanium carbide cermet rod/insert/plate/customized shape/guide roller and so on(belong to the steel-bonded cemented carbide), until now our products have been sold to many countries, like the Turkey, Belgium, Australia, Japan, Korea, Vietnam, India, Pakistan, Thailand and etc.
2. HASTION Workshop
HASTION has passed the ISO9001:2008 international quality system authentication. we are well equipped with the high-level machines for production and inspection.until now HASTION has total over 600tons annual production capacity(TiC rod: 120-180tons; metal powder: 400-450tons), also our prodution scale is still increasing.
- Place of Origin:
- Unit Price:
- USD 5~100
- Price Terms:
- FOB any port in China
- Packing & Delivery 1. Package Details(Metal Powders and TiC Rod/Insert/Plate Products) Samples: by vacuum plastic bag firstly, then Carton. Productions: by steel drums, then packed by pallet.
- Payment Terms:
- Delivery Time:
- 7 days
- Min Order Quantity:
- Standard / Certificates:
- steel rolling mill wear part, gt35 guide wheel, titanium carbide guide roller
