6 dof Motion Simulation Platform Stewart Mechanism System Flight simulator Driving simulator

6 dof Motion Simulation Platform Stewart Mechanism System Flight simulator Driving simulator , FDR-06DOF
Item Code / Model Number:
FDR-06DOF

6 dof Motion Simulation Platform Stewart Mechanism System Flight simulator Driving simulator 6 dof Motion Simulation Platform Stewart Mechanism System Flight simulator Driving simulator
Product Description

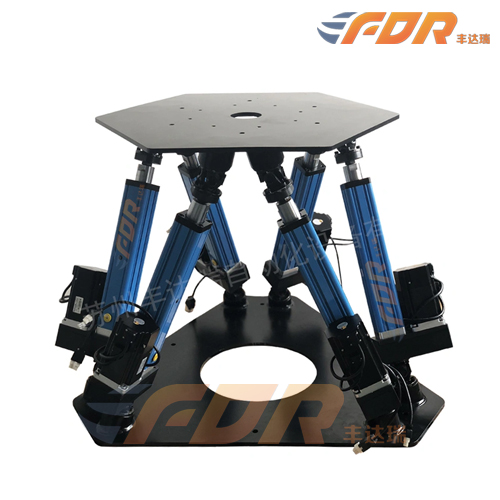

The six degree of freedom motion simulation platform system is composed of six degree of freedom motion platform by Stewart mechanism, computer control system and drive system. The lower platform of the 6-DOF motion platform is installed on the ground, and the upper platform is the motion platform. It is supported by six electric cylinders. The moving platform and the electric cylinder are connected by six Hooke hinges. The electric cylinder and the fixed base are connected by six Hooke hinges. The six electric cylinders are servo electric driven electric cylinders. The computer control system realizes the six degrees of freedom movement of the moving platform by coordinating the stroke of the electric cylinders. That is, in Cartesian coordinate system, there are three translational motions and rotations around three coordinate axes.
Six degree of freedom motion platform can be widely used in various training simulators, such as flight simulator, ship simulator, naval helicopter take-off and landing simulation platform, tank simulator, car driving simulator, train driving simulator, earthquake simulator, etc. The 6-DOF motion platform can also be used in the fields of motion pictures, entertainment equipment, etc., and even can be used in the docking of space spacecraft and refueling docking of air tanker. In the processing industry, it can be made into 6-axis linkage machine tools, smart robots, etc.

Product Feature

1. Full digital closed-loop servo control, professional multi axis motion control card to ensure smooth motion and high simulation, reduce motion drift and distortion.
2. New modular combination and free & flexible system integration to meet the different needs of customers.
3. High precision and high rigidity electric cylinder drive system and platform combination ensure high rigidity and high efficiency of platform system.
4. Multiple mechanical and electrical safety protection to ensure the absolute safety of the platform system.
5. High response, high speed, high acceleration and low noise to meet the requirements of various operating environments.
6. Friendly human-computer interface, easy to set and easy to operate.
7. Energy saving, easy maintenance and long service life.


Advantages

*High speed and high precision
*Energy saving, long service life
*Stable performance
*Low maintenance cost, environment friendly.
*Waterproof and dust proof
*OEM parameters customized platform size
*Low noise


Application

*Flight simulator
*Ship simulator
*Naval helicopter take-off and landing simulation platform
*Tank simulator
*Car driving simulator
*Train driving simulator
*Earthquake simulator
* Motion pictures, dynamic 4D entertainment facilities
*Game platform, VR
*The docking of space spacecraft and refueling docking of air tanker
*6-axis linkage machine tools, smart robots
*Educational or industrial grade using
  • Place of Origin:
  • CHINA
  • Brand:
  • FDR
  • Unit Price:
  • USD 2600-8750
  • Price Terms:
  • FOB Shanghai
  • Packing:
  • WOODEN BOX
  • Payment Terms:
  • L/C;T/T;Cash
  • Delivery Time:
  • 20 days
  • Min Order Quantity:
  • 1
  • Standard / Certificates:
  • CE & ISO9001
  • Keywords:
  • 6 dof flight driving simulator, racing ship tank simulator, earthquake simulator
