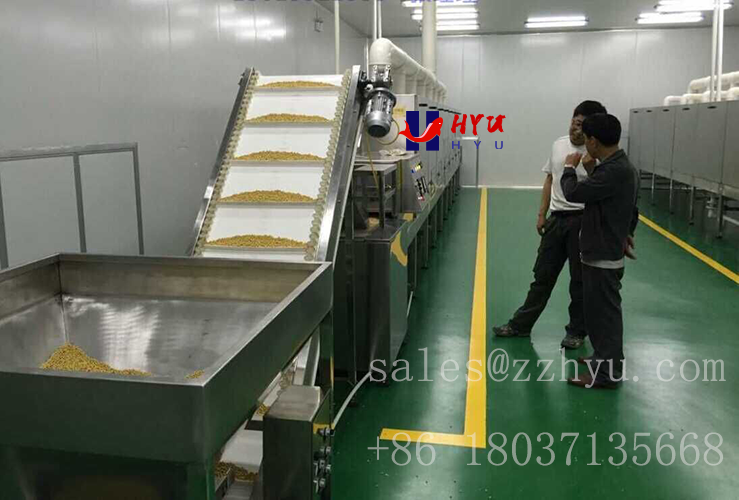

Sell Microwave Food Drying Machine, zzhyu-40

Continuous Type Belt Microwave Dryer

Machine Model HYU-T-40 HYU-T-60 HYU-T-80 HYU-T-100
Output Power 40Kw 60Kw 80Kw 100Kw
Microwave frequency 2450±50MHz 2450±50MHz 2450±50MHz 2450±50MHz
Microwave leakage ≤1mw/cm2 ≤1mw/cm2 ≤1mw/cm2 ≤1mw/cm2
Machine overall dimension (LxWxH) 6* 1.4* 1.7 m 8* 1.4* 1.7 m 10* 1.4 * 1.7 m 14* 1.4* 1.7 m
Machine installation area (LxWxH) 8* 3* 3.5 m 10* 3* 3.5 m 12* 3* 3.5 m 16* 3* 3.5 m
Transmission speed 0.5~5m/min
(adjustable) 0.5~5m/min
(adjustable) 0.5~5m/min
(adjustable) 0.5~5m/min
(adjustable)
Magnetron cooling method water cooling
Or air cooling water cooling
Or air cooling water cooling
Or air cooling water cooling
Or air cooling
Temperature measurement method infrared temperature probe infrared temperature probe infrared temperature probe infrared temperature probe
Measuring Rang 0~300℃ 0~300℃ 0~300℃ 0~300℃
Control method PLC PLC PLC PLC
