Heaphone Earphone Diaphragm Coil Winding Machine

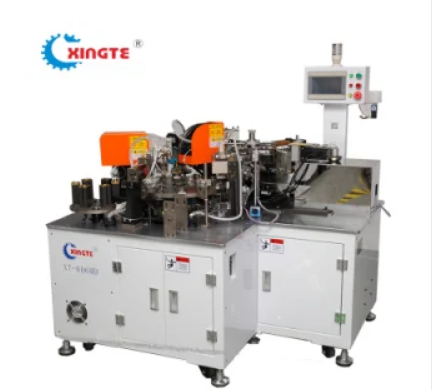

Heaphone Earphone Diaphragm Coil Winding Machine, XT-606MD
Item Code / Model Number:
XT-606MD

Heaphone Earphone Diaphragm Coil Winding Machine Heaphone Earphone Diaphragm Coil Winding Machine
A stand alone fully automatic system for winding self-supporting air coils using wire coated with thermo-plastic adhesive. The wire is heated by the hot air supply as it is wound onto the coil, and the turns are bonded together by the adhesive. The finished coil is removed from the tooling and automatically ejected from the machine.
Applications include: RFID coils. laser heads, voice coils, magnet coils, sensor coils, vibrator coils and pancake motor coils

Main features:

Automatic wire clamp and cut system, layer winding, material unloading and cleaning of the tool during each cycle.
Optional release agent dispensing to aid removal of the coil from the tooling.
Fine programmable pitch control enabling precise layer winding.
15" touch screen for easy setup, with industrial PC, network card, unlimited program storage on USB stick.
Wire tensioner with magnetic braking provides constant wire tension.
Synchronous drive tailstock ensures precise winding tool alignment and allows for smaller core ID's.
Temperature of the hot air system is freely programmable.
If a number of coil types are required from one machine, then the programmable tailstock position allows a quicker tool changeover time.
  • Place of Origin:
  • China
  • Brand:
  • Xingte
  • Unit Price:
  • USD 15000-23000
  • Price Terms:
  • CIF FUYONG
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 35 days
  • Keywords:
  • coil winding machine
