3d laser cutting robot machines

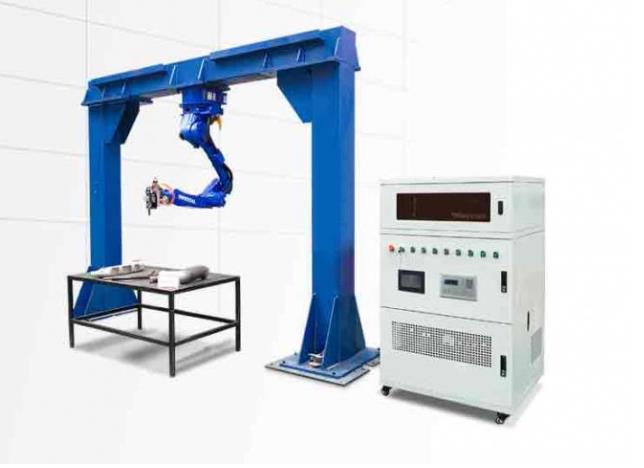

3D 6-Axis Robot Laser Cutting Machines
The 3D laser cutting machine is a perfect combination of six axis industrial robots and high-precision laser systems, paired with a specially designed lightweight 3D anti-collision cutting head. It can cut the spatial curve trajectory of various irregular 3D work-pieces and add multiple additional axes to achieve seven axis and eight axis linkage. The overall structure is designed according to ergonomics, meeting the needs of small and medium-sized batches and diversified flexible processing in industries such as locomotive manufacturing and helmets, and strongly promoting the upgrading of industrial intelligent manufacturing.
Technical Specifications:
| Laser cutting light source | High performance anti high reflection fiber laser |
| Laser power | 1000W/1500W/3000W/6000W |
| Repetitive positioning accuracy | ±0.03mm |
| Cutting wall thickness | 0.5-10mm (depending on material) |
| Cutting speed | ≤12m/min |
| Cutting aperture | ≥3mm |
| Robot model | FANUC-M20iA/B/D & YASKAWA-GP25 |
| Airspeed | ≤30m/min |
| Path accuracy | ±0.12mm |
| Scope of Work | 2200 * 1800 * 200mm (cutting width is related to the shape and height of the workpiece) |
| Effective radius of robot | 1853mm |
| Worktable load | ≤ 25kg (at the center of the flange) |
| source | Three phase five wire system AC380V 50HZ |
| Protection level | IP54 |
- Place of Origin:
- china
- Brand:
- sintec
- Unit Price:
- USD 5000
- Price Terms:
- FOB wuhan
- Payment Terms:
- T/T
- Keywords:
- laser cutting machines
