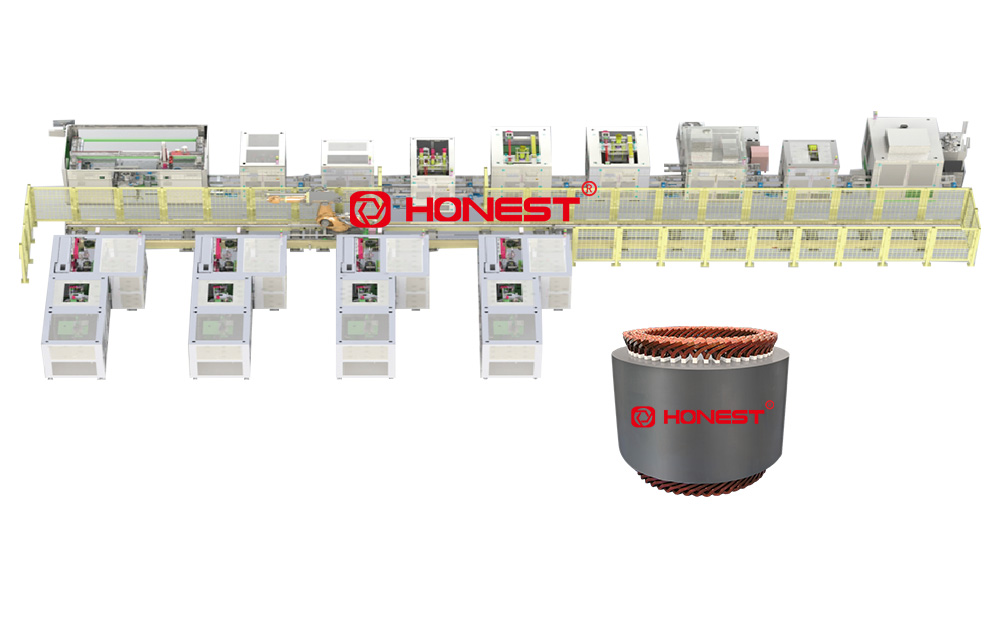

X-pin Motor Production Line

X-pin Motor Production Line

Compared with Hair-pin, X-pin has a lower end height, which can further reduce the size of the motor and facilitate the layout of the axial space of the entire vehicle. X-pin's power and density have increased, and the manufacturing process is simpler than that of wave winding. The investment cost of X-pin automation equipment is lower than that of the current Hair-pin motor production line, and the product performance and investment significantly exceed that of wave winding, and it will become a new trend in motors. The X-pin motor production line is suitable for the fully automatic production line of hairpin motor stators for new energy vehicles. It is equipped with a flexible wire making machine and can be used for up to 6 wires and 12 layers of stators. It can adapt to the production of various wire types and get rid of one kind of the line shape is bound by a set of molds, and when one of the equipment fails, the other equipment can still produce normally.
