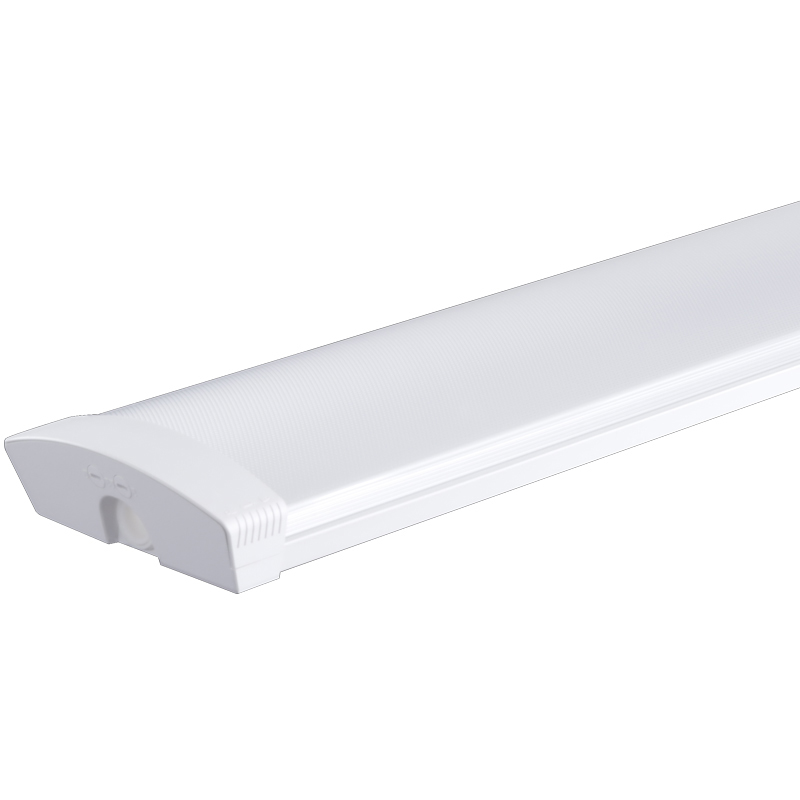

UNILINE 44 LED Linear Fixture
UNILINE 44 LED Linear Fixture, L25Item Code / Model Number:
L25
UNILINE 44 LED Linear Fixture
ERVAN linear luminaire L25 is a flexible and slim luminaire with IP44 for multiple indoor application such as parking garages, schools, offices, culverts, laundry rooms, kitchens and industrial buildings. It is suitable for surface mounted or wall mounted, rails bracket mounting, horizontal wires and wire suspension.
Certification: CE / Rohs / Dmark
Ingress protection rating(IP): IP44
Impact resistance(IK): IK07
Ambient temperature: -20~40°C
Protective class: Class I
Glow wire: 650°C
Terminal: 5x2.5mm² push-in terminal
Weight(Net): 600mm-1.8KG / 1250mm-2.8KG / 1550mm-3.3KG
Installation: Surface mounted / Cable wire / Wire suspension / Wall mounted
Mains voltage: AC 220~240V; DC 180-264V 50/60Hz
CCT: 3000 / 4000 / 5000 / 6500K
CCT Adjustable: 3000K-4000K
CRI: 80~95
Luminous flux: 1430~7500lm
Certification: CE / Rohs / Dmark
Ingress protection rating(IP): IP44
Impact resistance(IK): IK07
Ambient temperature: -20~40°C
Protective class: Class I
Glow wire: 650°C
Terminal: 5x2.5mm² push-in terminal
Weight(Net): 600mm-1.8KG / 1250mm-2.8KG / 1550mm-3.3KG
Installation: Surface mounted / Cable wire / Wire suspension / Wall mounted
Mains voltage: AC 220~240V; DC 180-264V 50/60Hz
CCT: 3000 / 4000 / 5000 / 6500K
CCT Adjustable: 3000K-4000K
CRI: 80~95
Luminous flux: 1430~7500lm
- Other Price Terms:
- EXW
- Packing:
- Work package, loose package
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 35 days
- Keywords:
- led linear fixture, ce rohs, ip44 ik07 flexible and slim
Company Profile
- Business Type:
- Manufacturer
- Country:
- China
- Employee Count:
- 300
- Brands:
- ERVAN
- OEM:
- YES
- ODM:
- YES
- Existing Markets:
- Europe, USA, Latin America, Oceania
- R&D Department:
- YES
- Factory Location:
- Building S14, Tian'an Digital City, Fenggang Town, Dongguan, Guangdong Province, China
- Production Leadtime:
- 25
- Offshore C/O:
- NO
- Monthly Productivity:
- 120,000 pcs
- Certificates:
- CE, ROHS
- Strengths:
-
- Continuous innovation, consistently high quality production, and reliable quality assurance are the basic definition of ERVAN luminaies
- High investment for high-tech laboratory equipments, professional theoretical support and strong OEM/ODM caoabilities
- A stable and effcient supply chain management system
- Product Categories:
- Linear Light, Floodlight, LED Indoor Lighting, Tri-Proof Lamp, LED Tube, Flood Light, High Bay, LED Light
