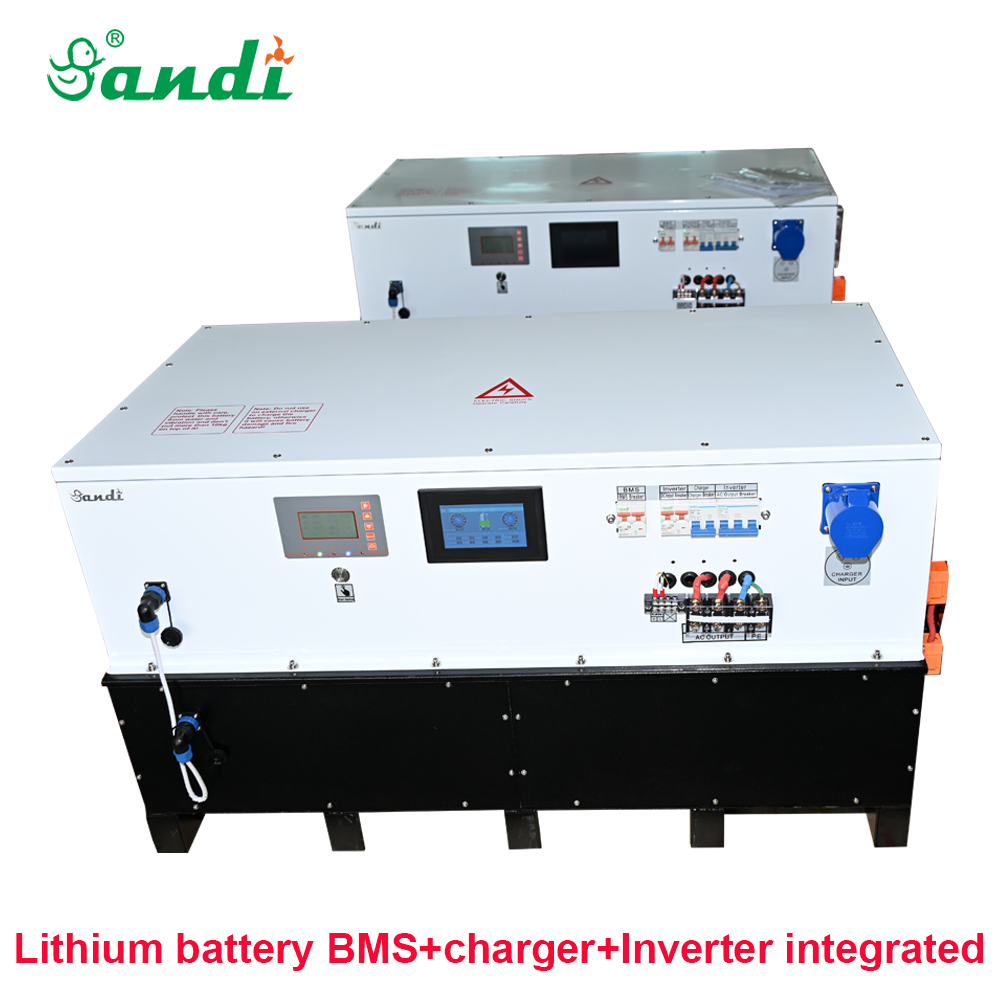

All in one system 32KWH LiFePO4 Lithium Battery with AC Charger and 12-15KW Inverter

Our All in one system 32KWH LiFePO4 Lithium Battery with AC Charger and 12-15KW 120/240V Inverter for mobile vehicle application ESS including LiFePO4 Lithium Battery with BMS, off grid pure sine wave inverter, AC/DC charger.
Product introduction:
This product is composed of high quality lithium iron phosphate core (series-parallel connection) and advanced BMS management system
.

It adopts master-slave mode, which is convenient for monitoring and controlling the input and output system. The charging and discharging are independent, it can control the charging current of the AC charger and solar controller according to the battery temperature, voltage and SOC to better protect the battery cells from overcharging, overheating and discharging.

It has high reliability and long life, products developed for applications such as solar energy storage, industrial and commercial energy storage, household energy storage, charging piles, data room and other applications.
The product adopts integrated design,

higher integration, saving installation space; adopts domestic well-known brand high performance lithium iron phosphate cathode material, good core consistency, design service life of more than 10 years; the input and output circuit breakers are equipped with circuit breakers, which are safer and more reliable, front wiring, convenient installation and maintenance, easy operation; various functions, with single over-voltage/under-voltage, primary and secondary alarm protection, charge/discharge overcurrent, high temperature, low temperature, insulation and short circuit protection and recovery functions;

strong compatibility, seamless docking with Inverter
、
solar charge controller, AC/DC charger, charging piles and other major equipment; communication interface forms, CAN2.0 and so on can be customized according to customer needs, convenient system remote monitoring and flexible use. High energy, low power lithium electric equipment, achieve higher energy supply, lower energy consumption, and reduce environmental pollution; adopt all-round, multi-level battery protection strategy and fault isolation measures to ensure the safe operation of the system.
Product advantages:
l
All-in-one design, high integration and space saving installation
；
l
Using high-performance lithium iron phosphate cells, laser welding, good cell consistency, designed service life of more than 10 years
；
l
Charging and discharging are controlled separately, which is convenient and reliable to control charging and discharging. The discharge port will not be disconnected when over-charging, and the charging port will not be disconnected when over-discharging,

the system has good stability
；
l
Master-slave mode, passive equalization, can manage the equalization resistance, can set the equalization start voltage difference, and monitor the equalization resistance temperature, more intelligent and safe, and reduce the impact of barrel effect on system energy storage
；
l
BMS adopts NXP(USA) automotive-grade high-performance chips, with strong anti-interference, good reliability and wide temperature range
；
l
CAN2.0 communication interface, has the advantages of strong real-time performance, long transmission distance, strong anti-electromagnetic interference ability
；
l
System parameters can be set through the host computer, such as fan start/stop temperature, charger maximum current setting, charge and discharge current correction, SOC correction, with insulation leakage detection function to prevent oil leakage and short circuit of the cell
；
l
Integrate Solar charge controller or AC charger optional, BMS communication control, more safe and reliable;
l
Cell temperature management, can be automatically controlled with the air conditioner heater according to the cell condition to make the cell works at the most suitable temperature, and can be linked with the fire protection system as needed
Model
SPVLI-30KWH-INV12KW
Isolation mode
Low Frequency Transformer
Inverter Part
Battery Input
Rated Voltage (Vdc)
307VDC
Voltage range (Vdc)
278-400V
AC Output
Rated output power
12KW
Output waveform
Pure Sine Wave
Rated Voltage
120/240VAC
Phases
Split phase + N + PE
Rated current (A)
50A(Phase Current)
Frequency
60Hz
Power Factor (PF)
>0.95
Inverter Efficiency
>92%
Display
LCD
Overload Ability
150%, 35 seconds
AC-DC Charger Part
AC Input
Voltage range(Vac)
180-240Vac
DC Output
Rated voltage(Vdc)
330Vdc
Rated current(A)
20A
Lithium Battery Part
Cell/Number
105AH/96PCS
Rated voltage
307V
Max charge current
20A
Max discharge current
100A
Charge temperature range
0℃ ~ 50℃
Discharge temperature range
-20℃ ~ 50℃
Cell charge end voltage
3.6V
Cell discharge end voltage
2.7V
Protection Function
Protection
Input reverse polarity, under voltage, over voltage, output over-current, short circuit, overheating etc.
Cooling method
Fan-cooled
Degree of protection
IP20(indoor)
Mechanical
D
imension
Depth*
Width
*
Height
645x891x767mm
Weight (Kg)
378Kg
