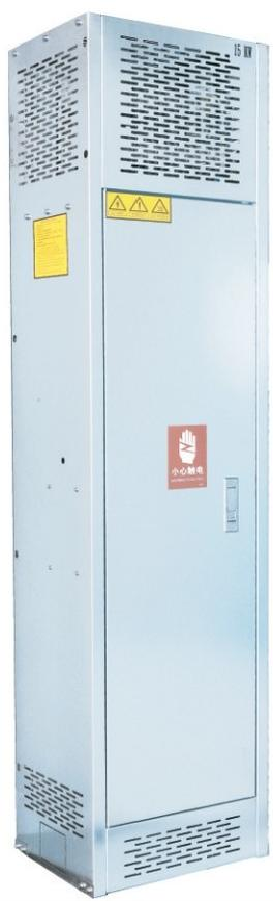

controller for machine room
controller for machine room, CPM01K■ The new standard applies to GB7588.1
■ Adopting LDC1000B integrated controller
■ Super anti-interference serial communication method,without the need for shielded wires for hall calls and car communication lines
■The terminal board is highly integrated and fully prefabricated cables to prevent incorrect plug insertion.
■Equipped with safety and door circuit node indicator lights,as well as independent short circuit sockets for easy debugging and maintenance.
■ Equipped with UCMP to prevent accidental movement of the lift car and door lock bypass device
■The cabinet body adopts environmentally friendly zinc free galvanized sheet,which is aesthetically pleasing and has a small volume.
■Floor mounted and wall mounted Suitable for business elevators,residential elevators,freight elevators,etc
■ Maximum speed:3.5 m/S
■ Input voltage:AC 220V/380V/510V
■ Power range:5.5KW-30KW
■ Adapted motor:PM/IM
■ Adaptive holding brake:current≤5A,DC48V-220V continuously adjust- able (1V unit)
■ Adapted door operator:AC220V door operator system
■ Maximum floors:64
■ Control mode:single elevator/group control
■Deceleration method:Distance control directly stops
■ Size(mm):1300*350*250(height,width,thickness)
■ Control cabinet weight (kg):35.5
