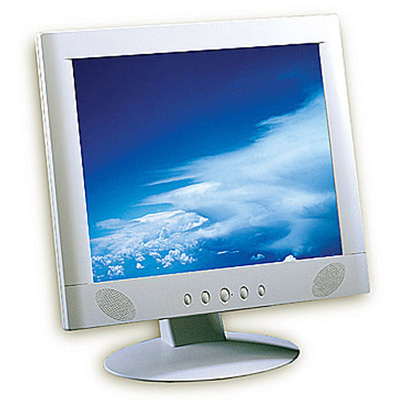

LCD Monitor
LCD Monitor, TC-17JItem Code / Model Number:
TC-17J
LCD Monitor
- Panel: 17" Active Matrix TFT LCD
- Maximum Resolution: 1280 x R.G.B. x 1024 pixel
- Pixel Dimension: 0.264mm x 0.264mm
- Brightness: 250 cd/m2
- Contrast Ratio: 400:01:00
- Viewing Angle: Left / Right = 60o / 60o, UP / Down = 40o / 60o
- Screen Size: 337.92mm (H) x 270.34mm (V)
- Display Colors: 16.7M Colors
- Horizontal Frequency: 580KHz
- Vertical Frequency: 75Hz
- Resolution Time: R / F : 25 / 15
- Signal Input: 0.7Vp-p / 75Ω
- I/O Connectors: 15 pin D-sub
- Power Supply: Input AC 100V ~ 240V, 50/60Hz, Output DC 12V / 3.0A(Max.)
- S. Video: Optional
- DVI Interface: Optional
- TEMPERED GLASS: Optional
- Power Consumption: 36W(max), <=3W (standby)
- Audio Output: 2W x 2PCS
- Operating Temperature: 0oC ~ 40oC
- Operating Moisture: <85%
- Dimensions: 450mm (H) x 430mm (W) x 220mm (D)
- Weight: 5.0KG (NW), 6.5KG (GW)
- Accessories: User Manual, Adpter, Powercord, Audio Cable, VGA Cable
- Specifications are subject to change without notice.
- Packing:
- 20" 528pcs 40" 1056pcs
