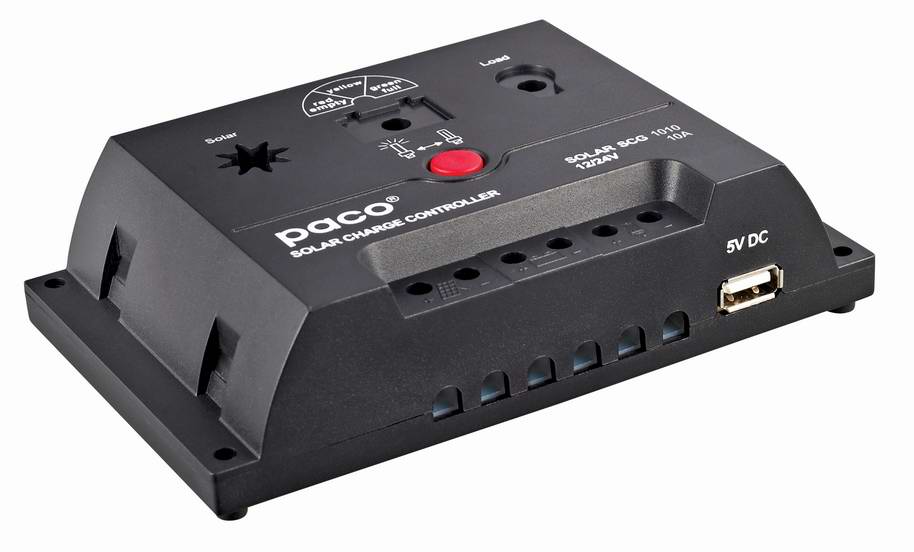

Sell Solar Charge Controller
Sell Solar Charge ControllerContinuous Selling Item
Sell Solar Charge Controller
•Microprocessor Control (CPU)
•Low-loss serial controller
•PWM-controlled constant-voltage charging
•Battery charging with automatic charging mode selection (float, boost, equal)
•Automatically adjusts to the voltage level 12 V/24 V
•Current-dependent load deactivation
•Automatic load reactivation
•Temperature compensation
•Grounding on the plus side
•Integrated self test (start voltage 17.0 V)
•LEDs to display the battery charge status
•LEDs (red/green)to display the function status
•Max module input short circuit current at 25℃: 10A
•Max load output current at 25℃: 10A
•System voltage: 12 V / 24 V
•Max voltage of Solar collector: 47 V DC
•USB output voltage (continuous): 5.0V DC,800mA
•Boost charging: 14.4V / 28.8V
•Equalisation charging : 14.7V / 29.4V
•End-of-charge voltage(float): 13.9V / 27.8V
•Enclosure protection class: IP 32
•Temperature compensation: -4 mV / K / Zelle
•Ambient temperature allowed: -25℃…+50℃
•Terminal size(fine/single wire): 2.5 mm 2/4 mm 2
•Dimensions(L×W×H): 145x90X39mm
• Compliant standards: CE, EN61000
•Low-loss serial controller
•PWM-controlled constant-voltage charging
•Battery charging with automatic charging mode selection (float, boost, equal)
•Automatically adjusts to the voltage level 12 V/24 V
•Current-dependent load deactivation
•Automatic load reactivation
•Temperature compensation
•Grounding on the plus side
•Integrated self test (start voltage 17.0 V)
•LEDs to display the battery charge status
•LEDs (red/green)to display the function status
•Max module input short circuit current at 25℃: 10A
•Max load output current at 25℃: 10A
•System voltage: 12 V / 24 V
•Max voltage of Solar collector: 47 V DC
•USB output voltage (continuous): 5.0V DC,800mA
•Boost charging: 14.4V / 28.8V
•Equalisation charging : 14.7V / 29.4V
•End-of-charge voltage(float): 13.9V / 27.8V
•Enclosure protection class: IP 32
•Temperature compensation: -4 mV / K / Zelle
•Ambient temperature allowed: -25℃…+50℃
•Terminal size(fine/single wire): 2.5 mm 2/4 mm 2
•Dimensions(L×W×H): 145x90X39mm
• Compliant standards: CE, EN61000
