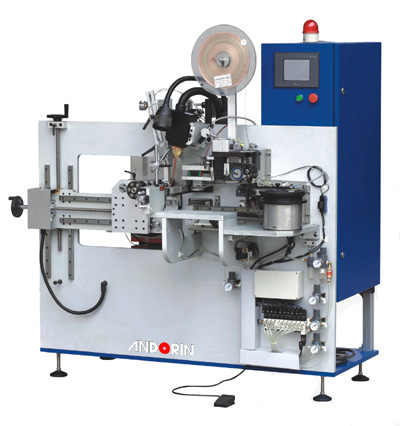

Automatic brazing machine
For brazing carbide tips to circular saw blades
Model No.: CE079D pad and wire welding
Accurate,durable welding quality
Easy to operation,clear graphical indexing table
Advanced heating controller, small size, low power consumption, high efficiency
Automatic temperature control during welding
CNC control, safe and reliable
Technical parameters:
Saw blade diameter: 90MM-790MM
Hook angle: –10º up to +30º
Saw tip length: 3.5mm-13mm
Saw tip width: 1.5mm-12mm
Saw tip thickness: 1.5mm-3.0mm
Other special requirements are available
Power supply: 220V~, 50Hz (cable not less than 6mm2)
Working pressure: 6.0kgf/cm2
High frequency power: 6000W
Total power:6.5kW/H
Ventilation Capacity:>5 m3/min
Chiller flow (optional):22 L/min (Power:1.5 KW)
Cooling system power: 1.5KW
Brazing capacity: up to 18teeth/min
Welding Precision: ≧5mm
Dimensions(L*W*H):L 1530mm*W 1100mm*H 1640mm
Net weight: 421.70 kgs
