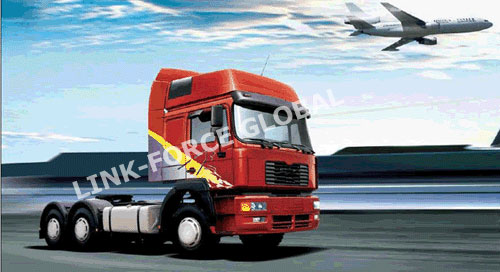

Sell Truck GW4250

GW4250FD1 Prime Mover(Man power III)
Model GW4250FD1
Driveline 6×4
Wheelbase (mm) 3500+1400
Overall dimension Length(mm) 7395
width(mm) 2490
height(mm) 3770
Track FR/RR(mm) 2048/1804
Kerb weight (kg) 9850
GVW(kg) 25000
Permissible weight(kg) 49000
Front/rear axle FR/RR 7000/18000(two axis in parallel)
Max speed Km/h 110
Min turning diameter m 18.7
Engine style
Model D2866LF28
Type Intercooling, supercharging,
Number of cylinder Direct-In-line 6
Displacement(L) 9.726
Emission Euro III
Max output power(kw/rpm)
Max torque (N.m/rpm) 301(410)
1850/900-1300
Clutch
Type MFZ430
Single dry plate, hydraulic control with air pressure assistance, Diaphragm Spring
Material Non-asbestos
Transmission
Model ZF16S1950 (option:RT014915)
Type
Gear box 16 forward gear, 2 rear gear
Single role, Mechanical, tele-operation device
Rear axle
Model MAN axle(option: Youngman)　Dual-circuit driven
