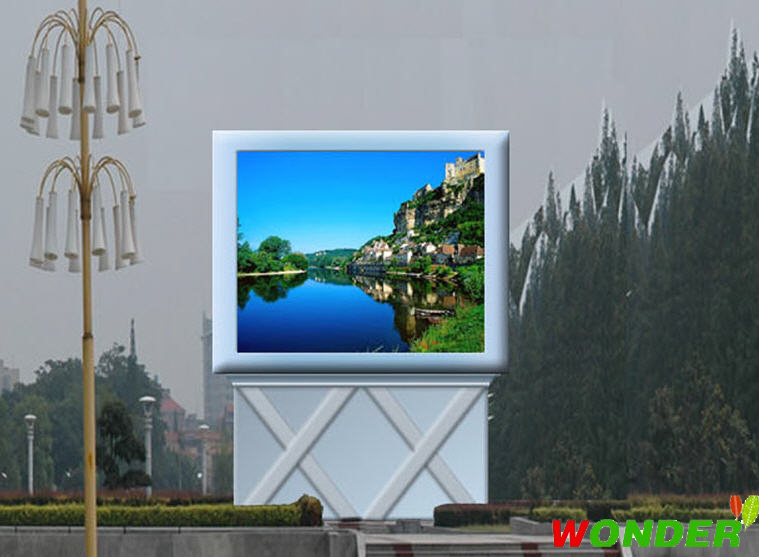

Outdoor Advertising Led Display Screen/ Led Video Sign P16

Widely used in plaza, square, Large entertainment center, prosperous emporia, shopping malls, public broadcasting advertisement, shopping malls ,train station, grand fashion performance etc.

1. Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
2. Supports different formats of image files, flash, video signal from TV, DVD,VCD etc..
3. To pictures and character, have clear, exquisite and real display effect.
4. High brightness can be adjustable manual/automatic to meet the different required environment
5. Wide viewing angle to 120 degree at horizontal line, 60 degree at vertical line, clear visual effect can be seen within this range, no picture change, no color excursion
6. Can repair each LED lamps, so the cost of maintain is lower, and easy to repair.
Full range Pixel available: P10, P12, P14, P16, P18, P20, P25, P31.25, P37.5, P40

Product Technical Parameter:
PH16mm Outdoor Full Color LED Display
Pixel Pitch: 16mm
LED: R, G, B: China(5mm oval)
Pixel Density: 3906 dots/m2
Pixel Configuration: 2R, 1G, 1B
Unit Board Dimension: 256mm*128mm
Physical Resolution: 16*8
Cabinet Dimension: 1024mm*768mm
Physical Resolution:64*48
Cabinet material: Iron
Weight: 60kg/m2
Optimal Viewing Distance:16-150m
Optimal Viewing Angle: 1200 (horz.), 600 (vert.)
Storage Temperature: -40Celsius to 85Celsius
Working Temperature: -20Celsius to 50Celsius
Relative Humidity: 10% to 90%
Thickness: less than 18cm
Voltage: 220/110 VAC, 50/60 Hz
Max Power Consumption: 1050 W/m2
Average Power Consumption: 430 W/m2
Control Mode: Synchronization
Control System: PCTV+DVI
Frame Rate: 60Hz/sec.
Refresh Ratio: 400-600Hz/sec.
Scan Method: Static
Grey Scale/ Colors:256 shades/16.7million
White Balance Brightness: more than 7500cd/m2
Lifetime: 100000 hours
Video Signal: PAL/NTSC
Transmission Distance: 0~15km
