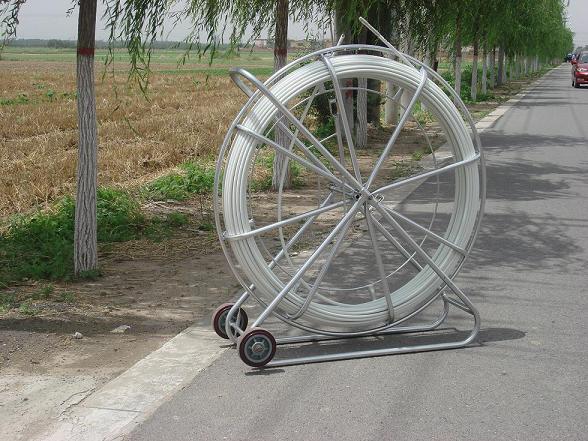

Tracing Duct Rodder, Duct Rods

Duct rodders, cable jockdy, fish tape, tracing duct rods &Duct Rodder, cable Jockey, fish tape, Tracing duct rods, snake duct rodder,.

Surface Coating: Polypropylene, ABS747 Fiberglass Duct Rudders & Fish tapes
A high quality fiberglass rod, specially constructed to provide exceptionally high tensile strengths, whilst retaining flexibility. The 80% fill rate glass fiber core is reinforced with a high strength resin. A braided reinforcing wrap is added before the final polypropylene wear resistant protective coating is applied. The continuous rods range from 4.5mm to 16mm with lengths from 30m to 300m.
Features and Benefits:
Strong non-conductive fiberglass rod construction.
Rustproof bull-nose pulling eye.
For longer conduit runs and underground duct.
Rugged tubular steel reel with adjustable positioning.
Feed device allows rod to feed out or be wound back onto reel with easy push or pull of rod.

Rod diameter φ4.5mm、φ6mm、φ9mm、φ10mm、φ11mm、φ12mm、φ13mm、φ14mm、φ15mm、φ16mm
Length range 10m-500m (as customer's need)
Bending radius 330mm
Fiber density 210kg/m
Fracturing pull 4200Kg
temperature range -40 ~ +80
