Sell Mini Alarm Dvr

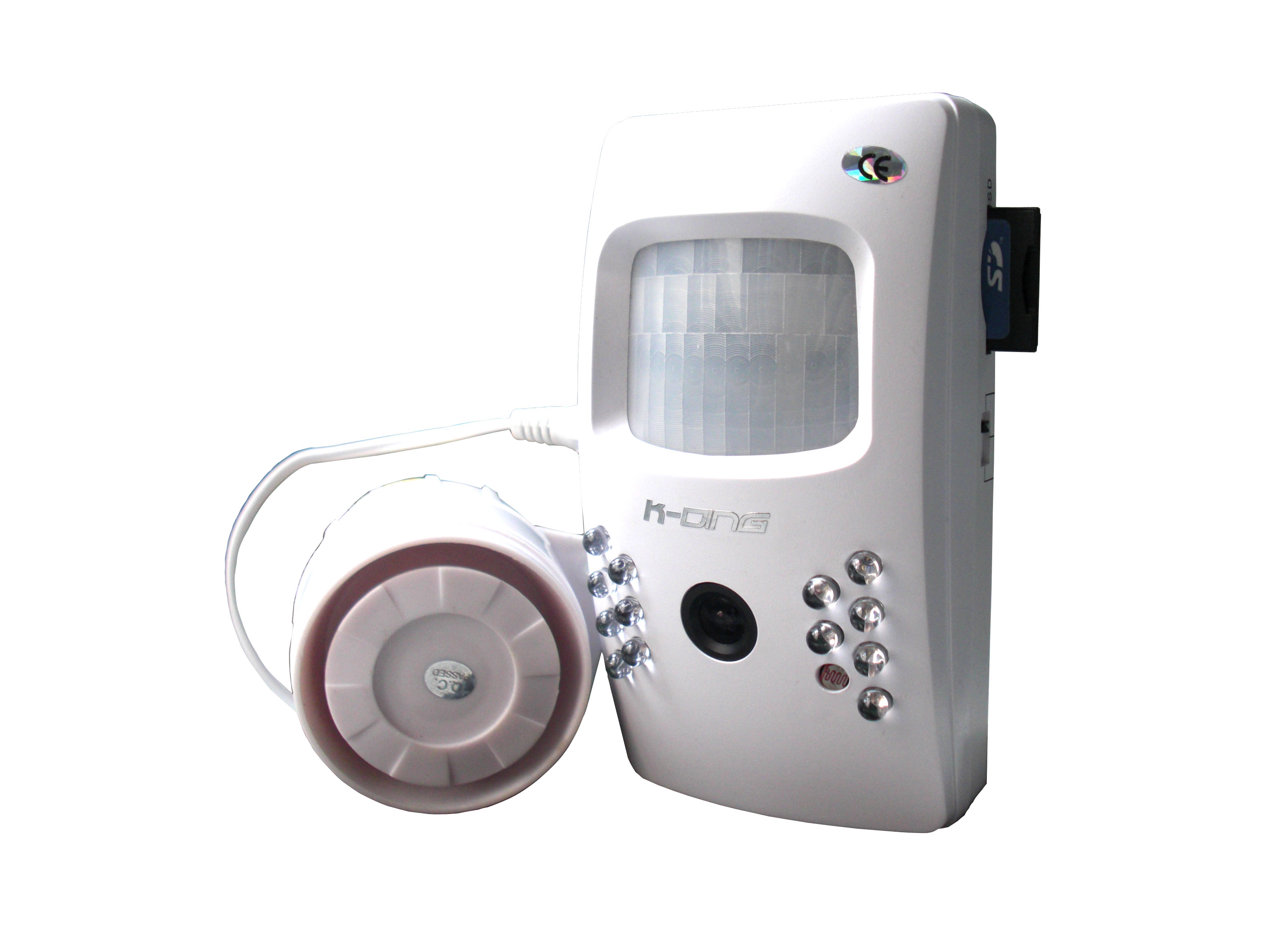

Product Name: Mini Alarm DVR
Item Number: MDS-6501
Rang of Uses: Shop/office/Home/Warehouse security surveillance DVR

Features:
>Work with alarm system in wireless
> PIR detective & motion detective
> Connect with a mini siren for alarm
> AVI recording and JPG snap optional
> Overwriting when memory is full.
> support 4G SD card
> Internal CCD camera
> Internal lithium battery for emergency
> Real time record
> Mode PAL/NTSC
> Review the video and browse pictures via monitor or TV
> Night vision

Specifications:
Items Data
Power supply DC 5V
Electric current 500mA-800mA
AV out 75Ω
AV Out volt 1Vp-p
TV Mode PAL / NTSC
Internal camera SONY 1/3 CCD (Optional)
Trigger for record Motion detection
Trigger for alarm Motion detection 、 PIR detection (optional)
PIR detection distance ≤8M
View angle ≤120 degree
Record Frame PAL：10 f/s NTSC：10f/s
AVI Resolution 320 X 240
JPEG resolution 640 X 480
Horizontal 420 TV Line
Memory ≤ 4 GB SD Card
OSD English
Alarm chip Fixed code :PT2262 / Study code: SC1527
Surge resistance 4．7MΩ（optional）
Data code D1 low ,D2 high,D3 empty,D4 empty
Wireless frequency 315MHZ/433MHZ (optional)
Li-battery capacity 1800MAH
Battery recharge ≤6 hours
Battery discharge ≤3 hours
AC adapter AC/110-240V, 50-60HZ, DC5V, 1.5A
RC distance ≤8M
IR distance 5M-8M
IR wavelength 850NM
