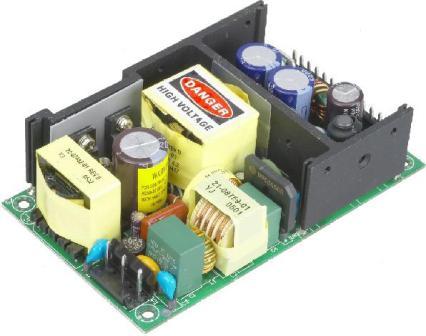

Switching Power Supply

AC/DC switching mode power supply.
Single to quad outputs.
All products equipped with multiple safety approvals such as UL/CUL, TUV, PSE, CCC...etc, and environmental care compliace such as RoHS, Energy Star, CEC etc.
All units are 100% burned in and tested.
Wide input voltage 90 to 264 VAC, 47 to 63 Hz.
At least 2 years warranty.

For ITE use: comply with UL60950-1 & EN60950-1
1. Wallmount model: 10W~15W (3~50 VDC)
2. Desktop model: 15W~150W (3~50 VDC)
3. Open Frame model: 30W~150W (3~50 VDC)
4. U-Bracket model: 63W~250W (3~50 VDC)
5. L-Bracket model: 180W (12~48 VDC)
6. Enclosed model: 63W (3~50 VDC)

For Medical use: comply with UL60601-1 & EN60601-1
1. Wallmount model: 12W (5~27 VDC)
2. Desktop model: 15W~130W (2~50 VDC)
3. Open Frame model: 30W~150W (3~40 VDC)
4. U-Bracket model: 63W~150W (3~40 VDC)

For Industrial use: Operating Temperature: -20C~+70C
1. Wallmount model: 10W (5~40 VDC)
2. Desktop model: 15W~130W (2~55 VDC)
3. Open Frame model: 40W~150W (3~50 VDC)
4. U-Bracket model: 63W~250W (3~50 VDC)
5. L-Bracket model: 180W (12~48 VDC)
6. Enclosed model: 63W (3~40 VDC)
