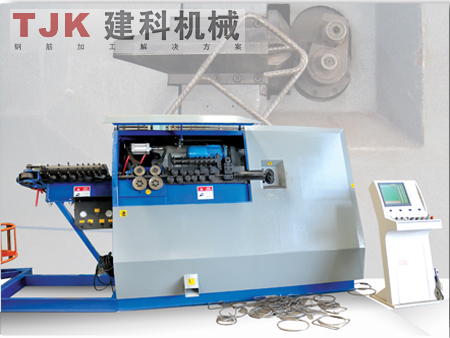

stirrup bending machine

STIRRUP BENDER


TECHNICAL DATA


Model Prime 12B Prime 16A
Single wire Φ6 – 12 [mm] Φ6 – 16 [mm]
Double wire Φ6 – 10 [mm] Φ6 – 10 [mm]
Max bending angle 180° 180°
Max bending speed 800 – 1050 [°/sec] 800 – 1050 [°/sec]
Max pulling speed 90 – 110 [m/min] 90 – 110 [m/min]
Max length of the stirrup side 1300 [mm] 1300 [mm]
Min length of the stirrup side 60 – 90 [mm] 60 – 90 [mm]
Length tolerance ± 1 [mm] ± 1 [mm]
Bending tolerance ± 1° ± 1°
Production capacity (single wire) 900 [pcs/h] 900 [pcs/h]
Production capacity (double wire) 1800 [pcs/h] 1800 [pcs/h]
Average air consumption 6 [l/min] 6 [l/min]
Average power consumption 5 [KW] 10 [KW]
Installed power 30 [KW] 50 [KW]
Bending direction Double direction Double direction


TJK Machinery Co., Ltd
Automatic stirrup bending machine, controlled by CNC, quickly and automatically measure, straighten, bend and cut, instead of 20~30workers.
Stirrup bending machine types:WG16A/WG16B/WG16CWG12B/WG12C/WG12D
（stirrup bending machine） Straightening system: one horizontal straightening unit and one vertical straightening unit (patented technology) combine with 4 traction rolls drove by servo motor, this ensures wires can reach the most accurate straightening effect.
(stirrup bending machine) Material feeding system: 2 payoffs with brakes, suitable for single and double strand, buffer unit can reduce the resistance and instability during the process of decoiling.
(stirrup bending machine) Bending and cutting system (patented technology): bending arm driven by servo motor can protrude or draw back while bending different angles, when cutting system receives signal, it will finish cutting work synchronously.
(stirrup bending machine) Control system: CNC control with malfunction alarm, PLC, servo motor and electric components use Japan and Germany brand.
(stirrup bending machine) Can edit any 2D shapes with max. 50 angles, the data base can store more than 500 shapes.Different shapes can be processed continuously without stop, furthermore no need to stop the processing while adjusting the bending angle.
