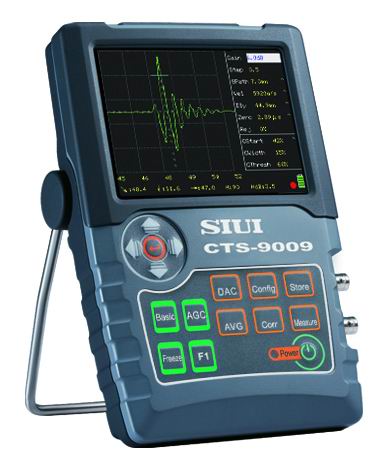

Hand-held Flaw Detector Cts-9009

-Max. sampling rate 240MHz; Measurement resolution 0.1mm.
-Ethernet communication: Achieving real-time communication with a PC and remote control.
-The convenient & useful probe frequency measure function enables the users to know the probe center frequency quickly, resulting in more precise flaw detection evaluation.
-Operating frequency range: 0.5~15MHz, at least 65dB detection sensitivity surplus, highlighting advantages of high sensitivity and broadband.
-20~500Hz PRF with 10 steps adjustable: avoid reverberation signals during flaw detection.
-Measure crack height by edge peak echo method.
-Acquire B-scan images by amplitude B-scan method.
-Featured with AWS D1.1/D1.5 and API 5UE evaluation standards.
-The gate magnifier function magnifies the echo area within the gate to the whole screen display.
-RF (Radio Frequency) echo display: good to thin-wall material measurement, academic research or qualitative analysis.
-The AGC (auto gain control) function, together with peak echo and image freeze function, help quickly identify the flaw highest echo, enabling efficient flaw detection.
-The AVG curve can make three curves of different equivalent values with one known flat-bottom hole or large flat-bottom echo.
-The DAC curve works with echo compare function, making echo quantification of different distances and amplitudes more convenient.
-The 5.7" color TFT LCD of wide viewing angle, high brightness and high definition delivers every clear detail.
-Up to 7-min dynamic cineloop and 1500-frame review, achieving dynamic scan process recording.
-Three different color schemes can meet the requirements of different application environments and habits.
-Up to 500 sets of curve and waveform can be saved for various workpieces and flaw detection standards.
