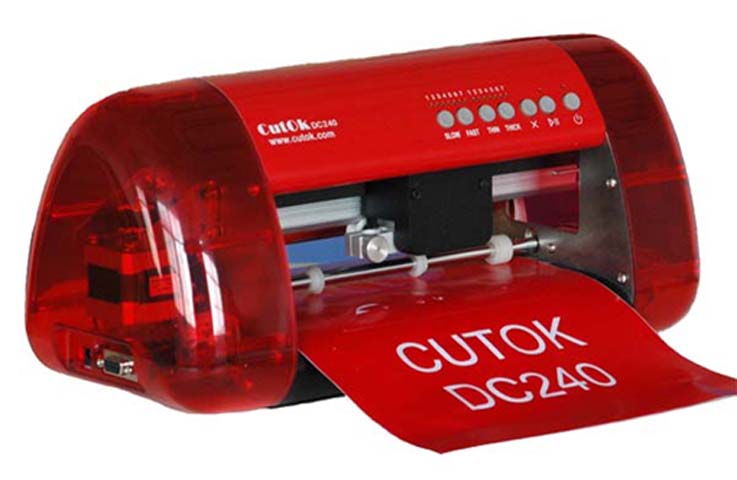

Small Cutting Plotter

CUTOK DC240/330 is a small cutting and drawing plotter with a registration mark Laser on it.

CUTOK DC240/330 is a 9"/13" mini vinyl cutter plotter sign making equipment.
You can draw, cut, kiss-cut and decupe shapes around. You can cut cartoon or other Vinyl and polyester sheets for your business and hobbies.

It is powered by a 16V DC adaptor.
Compatible with Windows VISTA, XP, 2003, 2000.
A Windows driver is provided and enables output from leading drawing software (eg CorelDRAW 12, Adobe IllustratorCS).

Item: CUTOK DC240/DC330
Configuration: Grit-rolling
Drive system: Stepping moter
Maximum cutting range: 190mm x 2000 mm/ 290 mm x 2000 mm
Effective sheet width: A4/A3 size supported
Cutting force: 60gf to 500gf (7 levels selectable)
Cutting speed: 10 - 280 mm/s ( 7 levels selectable)
No. Of pens mountable: 1
Media types: Film media 0.1 mm or less in thickness
Kent paper (inkjet or laser paper up to 300G/M2)
Drawing paper, Postcards, Scrapbooking

Inkjet photo paper
(Not all types of media can be cut)
Interface: USB
Power supply: Dedicated adapter, OUTPUT: DC 16V 2.5A
INPUT: AC100V~240V; 47Hz~66Hz
Working environment: 5 to 30 C, 35 to 80% R. H. (Non-condensing)
External dimensions: (W x D x H)380 x 170 x 165 mm/470 x 170 x 165 mm
Carton dimensions: 450 x 260 x 260mm /570 x 260 x 260mm
Weight: 4.5kg/5.5 kg
Gross weight: Approx. 5.0kg/Approx. 6.0kg
