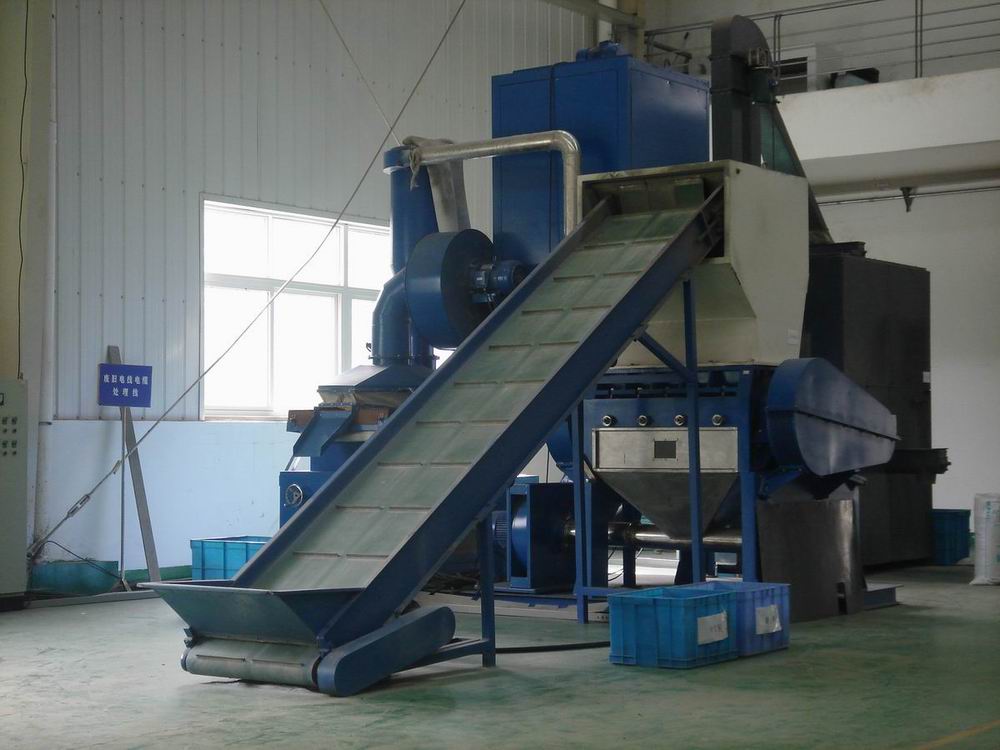

Waste Cable Resource Recycling Equipment

1. Technical Introduction
This equipment is designed for recycling metal and non-metal materials from disused wire and cable. It adoptsmechanical treatment to crush and separate used wire and cable. It has Benefits of low noise, high production and high recycling rate.

2. Process Flow
Disused wire and cable are delivered to shredder via belt conveyer. Crushed raw materials are blowed into vibrating separator by feeding blower. After vibrating separation high purity copper powder and plastic powder are obtained. Untreated wire and cable would be treated again by loop seal system.


3. Major Components and Technical Specifications
Major components include shredder, high pressure positive blower, and cyclone hopper, vibrating separator, dust collector, conveyer and PLC system. Specifications are shown as below:
Model No. RC-I RC-II
Process Capacity(kg/hr) 300-500 800-1200
Dimension(L*W*H mm) 7000*3200*2800 11000*4300*4150
Power Consumption (kw) 61 80
Operators 3 3
Metal Recovery Rate 95%-99% 95%-99%



4. Characteristics and Benefits
A. Power Loading Control (PLC) system
B. No secondary pollution such as waste water.
C. Low power consumption, stable operation.
D. Copper recovery rate is above 98%.

5. Raw materials and resulting materials
This equipment is designed to process used wire and cable which diameter is less than 2.5-3.0mm. After being processed, 1-2mm of copper powder and plastic powder are produced.
