Sell Samsung S3c2440 Arm9 Board Mini2440 256mb

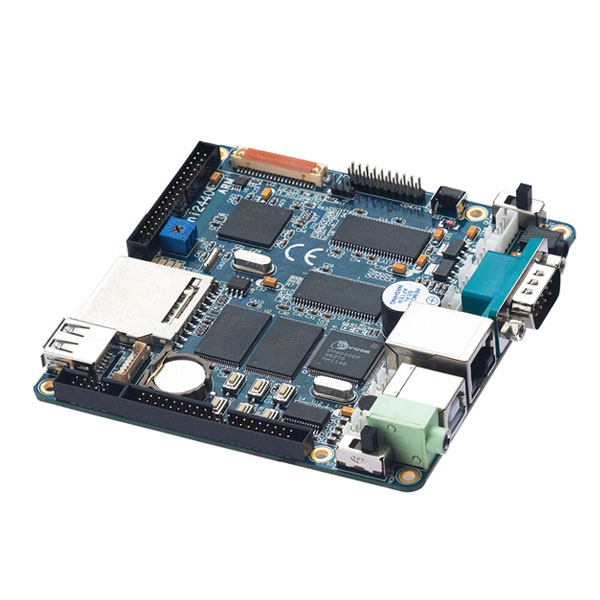

Samsung S3C2440 ARM9 Board Mini2440 256MB

Board Features:
CPU
-Samsung S3C2440A 400MHz, Max freq. 533Mhz

SDRAM
-64MB SDRAM
-32bits Data Bus width
-100MHz Clock

Flash
-256MB/1GB Nand Flash
-2MB Nor Flash, BIOS installed

LCD
-4 wire resistive touch screen interface
-Up to 4096 color STN, 3.5 inches to12.1 inches, up to 1024x768 pixels
-Up to 64K color TFT, 3.5 inches to 12.1 inches, up to1024x768 pixels

Interface and Resource
-1 x 10/100M Ethernet RJ-45(DM9000)
-3 x Serial Ports(1 RS232 with CTS and RTS)
-1 x USB Host
-1 x USB Slave Type B
-1 x SD Card Interface
-1 x Stereo audio out, 1 Micro In
-1 x 10-Pin JTAG
-4 x USER LEDs
-6 x USER buttons
-1 x PWM Beeper
-1 x POT can be used for A/D converter adjust
-1 x AT24C08 for I2C test
-1 x 20-Pin Camera Interface
-1 x Battery for RTC
-1 x Power In(5V), with switch and lamp

Oscillator Freq.
-12MHz

RTC
-Internal

Expand Interface
-1 x 34-Pin 2mm GPIO
-1 x 40-Pin 2mm System Bus

Dimension
-100 x 100(mm)

OS Support
-Linux 2.6.32
-Windows CE.Net 5.0/6.0
-uCos2

Content List:
1 x S3C2440 board (Preload with Linux)
1 x Serial cable
1 x Net cable
1 x USB cable
1 x 5V power adapter
1 x Parallel port wiggler JTAG emulator(for H-JTAG)
1 x DVD-ROM with product reference
