Sell PV cable
Sell PV cableContinuous Selling Item
Sell PV cable

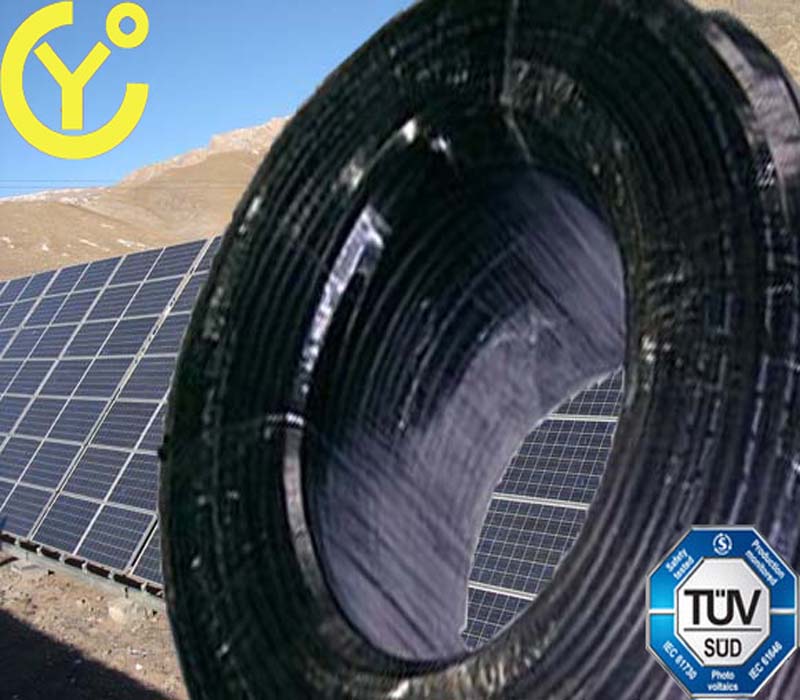

TUV certification cable for PV junction box add your value low your cost cable and cable assemblies for solar photovotaic system
Our solar photovoltaic cable&wire have the feature of overall flame and sunlight resistance, zero halogen, limited smoke, water and oil resistance. They can be installed in raceway, direct burial and aerial installations. The especially suit the harsh environment of solar power station
photovoltaic cable
1.RatingVoltage:600/1000V Temperature:125oC
2.Description
1:Conductor Tinned annealed copper
2:Insulation125 oCXLPE
3:Jacket:125 oC XLPE
3:Color:Core: black Jacket:black
4.Marking according to customer 's requirement.
5.Construction
Conductor Insulation Insulation Standard Dia. Jacket Outer Standard Dia.
Area Composition Conductor Dia. Standard Thickness Standard Thickness
mm2 N/mm aboutmm mm mm mm mm
1*2.5 50/0.25 2.04 0.89 3.82±0.1 0.89 5.6±0.2
1*4.0 56/0.30 2.59 0.85 4.30±0.1 0.85 6.0±0.2
1*6.0 84/0.30 3.17 0.98 5.13±0.1 0.98 7.10±0.2
1*10 78/0.40 4.07 1.11 6.29±0.1 1.11 8.50±0.2
Our solar photovoltaic cable&wire have the feature of overall flame and sunlight resistance, zero halogen, limited smoke, water and oil resistance. They can be installed in raceway, direct burial and aerial installations. The especially suit the harsh environment of solar power station
photovoltaic cable
1.RatingVoltage:600/1000V Temperature:125oC
2.Description
1:Conductor Tinned annealed copper
2:Insulation125 oCXLPE
3:Jacket:125 oC XLPE
3:Color:Core: black Jacket:black
4.Marking according to customer 's requirement.
5.Construction
Conductor Insulation Insulation Standard Dia. Jacket Outer Standard Dia.
Area Composition Conductor Dia. Standard Thickness Standard Thickness
mm2 N/mm aboutmm mm mm mm mm
1*2.5 50/0.25 2.04 0.89 3.82±0.1 0.89 5.6±0.2
1*4.0 56/0.30 2.59 0.85 4.30±0.1 0.85 6.0±0.2
1*6.0 84/0.30 3.17 0.98 5.13±0.1 0.98 7.10±0.2
1*10 78/0.40 4.07 1.11 6.29±0.1 1.11 8.50±0.2
- Place of Origin:
- China
- Brand:
- JINYOUJINHONG
- Port:
- FOB Shanghai
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 10
- Min Order Quantity:
- 1km
