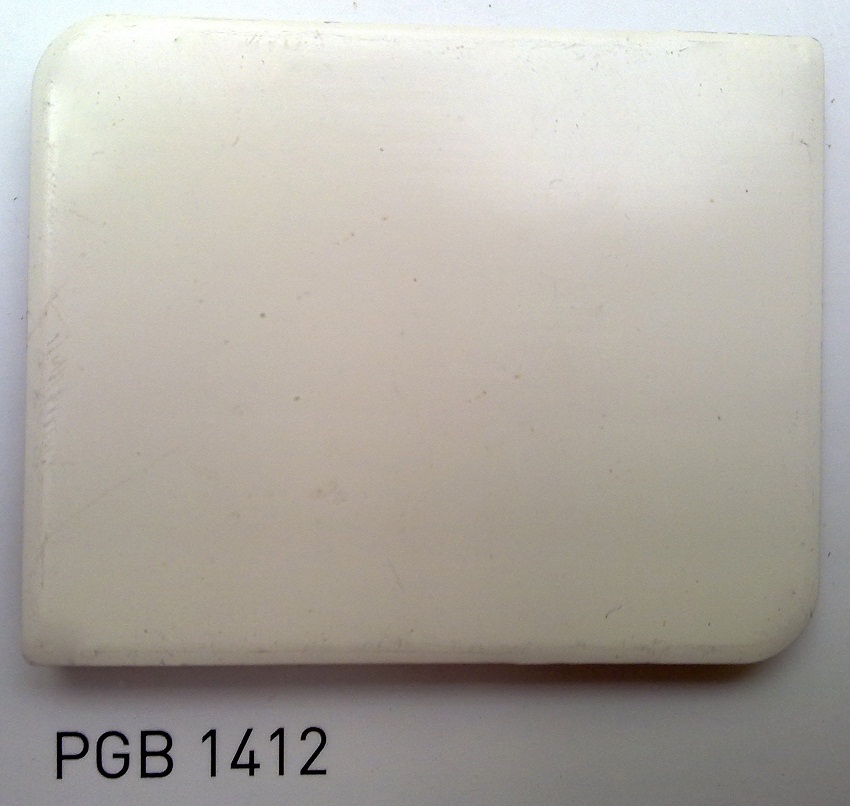

Pure White P&G BOND 4 mm COMPOSITE PANEL with 0,45 mm SHEETS

MECHANICAL PROPERTIES OF ALUMINIUM
Tensile Strength (Rm) 186 MPa (min 130 Mpa)
Yield Strength (Rp 0.2) 148 Mpa (min 90 Mpa)
Elongation (A50%) 6.8 (min 5)
Modulus of Elasticity 70000 Mpa

PANEL DIMENSIONS
Thickness 4,0 mm
Width 1020 mm, 1250 mm, 1500 mm
Maximum Production Length 6000 mm
Standard Dimensions 1250 mm * 3200 mm / 1500 mm * 3200 mm

TOLERANCES
Thickness of Composite Panel ± 0.2 mm
Width of Composite Panel 0 mm / + 2.0 mm
Length of Composite Panel 0 mm / + 4.0 mm
Diagonal Difference max. 3.0 mm
Linearity (On Width and Length ± 0.2 mm
Elongation 1.2 mm/m (50°C)

WEIGHT


4 mm 5.0 kg/m²



BOW
Panel Length < 1500 mm max 5 mm
Panel Length 1500 mm - 3000 mm max 7 mm
Panel Length > 3000 mm max 10 mm
