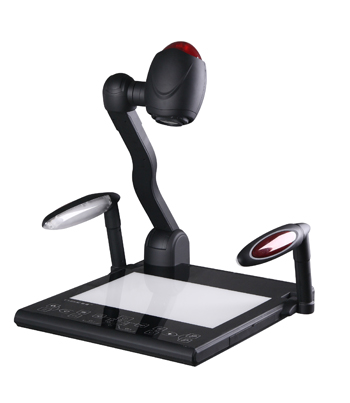

Digital Visualizer Ph-130w
Digital Visualizer Ph-130wItem Code / Model Number:
Digital Visualizer Ph-130w
Lens: F1.6~3.7, F3.9~85.8mm
Shooting Area: 357*280mm
Zoom(adjustable): 12 x optical + 8 x digital zoom
Focus: Auto/Manual
Image Sensor: 1/3'' CMOS
Total Effective Pixels: 1,300,000
Resolution: ≥ 750 TV line
Image Rotation: 180 degree
VGA line-to-lien scan: 1280*1024
Aperture: Auto
White Balance: Auto/Manual
Split Screen: Split tow half right/left
Image Effeect: Color/BW, positive/negative, mirror, text/graphic, brightness control, freeze, electric volume control, storage of 20 images
Remote Control: Infrared remote control
Camera Rotation: 350 degree horizontally and vertically
Top Lamp: LED lamps * 2
Base Lamp: LED lamp
AV Input: Microphone input * 1
AV Output: Video * 1; S-Video * 1
VGA Input: RGB * 2(3 routes matrix switch); Audio frequency(stereo)* 2
VGA Output: RGB * 2(matrix output); Audio frequency(stereo)* 1
RS-232 Port: Control of the projector
CON Port: Infrared emission * 2
USB Port: Provided
Power Supply: DC 12V 1.5A
Power Source: 100-240Volts 50-60Hz
Energy Consumption: ≤ 15W
Set up: 430*370*340mm
Fold: 430*370*150mm
Weight: 5KGS
* Design and specification are subjected to change without prior notice.
Shooting Area: 357*280mm
Zoom(adjustable): 12 x optical + 8 x digital zoom
Focus: Auto/Manual
Image Sensor: 1/3'' CMOS
Total Effective Pixels: 1,300,000
Resolution: ≥ 750 TV line
Image Rotation: 180 degree
VGA line-to-lien scan: 1280*1024
Aperture: Auto
White Balance: Auto/Manual
Split Screen: Split tow half right/left
Image Effeect: Color/BW, positive/negative, mirror, text/graphic, brightness control, freeze, electric volume control, storage of 20 images
Remote Control: Infrared remote control
Camera Rotation: 350 degree horizontally and vertically
Top Lamp: LED lamps * 2
Base Lamp: LED lamp
AV Input: Microphone input * 1
AV Output: Video * 1; S-Video * 1
VGA Input: RGB * 2(3 routes matrix switch); Audio frequency(stereo)* 2
VGA Output: RGB * 2(matrix output); Audio frequency(stereo)* 1
RS-232 Port: Control of the projector
CON Port: Infrared emission * 2
USB Port: Provided
Power Supply: DC 12V 1.5A
Power Source: 100-240Volts 50-60Hz
Energy Consumption: ≤ 15W
Set up: 430*370*340mm
Fold: 430*370*150mm
Weight: 5KGS
* Design and specification are subjected to change without prior notice.
- Place of Origin:
- China
- Brand:
- Osoto
- Packing:
- Package size: 575*183*445mm
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- Western Union
- Delivery Time:
- Within 15 days
- Min Order Quantity:
- 5 sets
- Standard / Certificates:
- ISO9000, CE, FCC, RoHS
- Keywords:
- document camera, visual presenter, overhead projector
