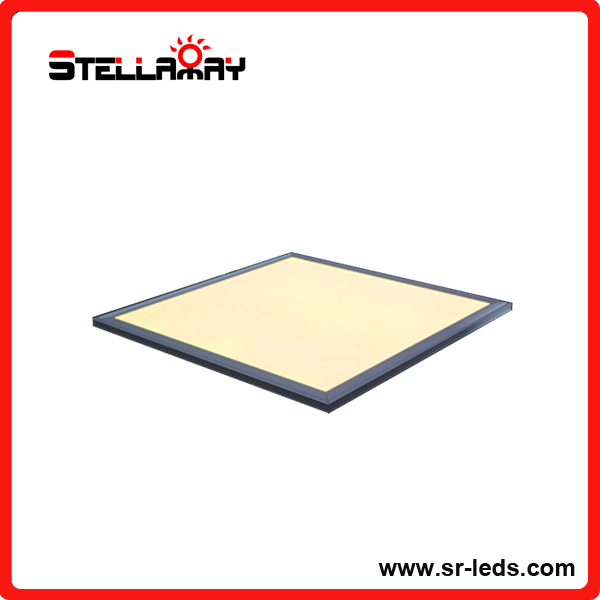

2ft Edge-lit Led Panel
2ft Edge-lit Led Panel, SR-PL-6060AItem Code / Model Number:
SR-PL-6060A
2ft Edge-lit Led Panel
60*60cm LED panel light / Flat LED panel:
1. Material: superior aluminum alloy and high quality lumisheet acrylic plate (PMMA).
2. Dimension: 598*598*12.8mm
3. Power: < 35W
4. Flux: 400-586 Lux (Height at 1.5M)
5. Lumen output: 2000~2200 lm
6. Operating Voltage: low voltage DC24V
7. Input Voltage: AC85V~AC265V available
8. Light source: low power SMD LEDs (placed in the edge of the plate)
9. Uniformity of light color: > 90%
10. Color Rendering Index (Ra): > 85
11. Lifespan: > 50000h (8 years using validity)
12. Beam angle: 120 degree
13. Color temperature: 2700K-6500K(Optional, according to your requirement)
14. Ambient temperature: -20℃~50℃
15. Can be ceiling or wall surface-mounted, recessed mounted, or work as a pendant.
16. Edge-lit methods, with advanced light guide technology.
17. Low heat, and more enviornment protection.
18. No stroboscopic, no pollution, long lifespan, low luminous decay.
19. Quickly start (0.01second) and the light is natural and soft, appearance is exquisite.
Application: replacement for conventional Grille Lamp in Conference rooms, Offices, Commercial Complexes, Residential Buildings, Schools, Universities, Hospitals, etc.
1. Material: superior aluminum alloy and high quality lumisheet acrylic plate (PMMA).
2. Dimension: 598*598*12.8mm
3. Power: < 35W
4. Flux: 400-586 Lux (Height at 1.5M)
5. Lumen output: 2000~2200 lm
6. Operating Voltage: low voltage DC24V
7. Input Voltage: AC85V~AC265V available
8. Light source: low power SMD LEDs (placed in the edge of the plate)
9. Uniformity of light color: > 90%
10. Color Rendering Index (Ra): > 85
11. Lifespan: > 50000h (8 years using validity)
12. Beam angle: 120 degree
13. Color temperature: 2700K-6500K(Optional, according to your requirement)
14. Ambient temperature: -20℃~50℃
15. Can be ceiling or wall surface-mounted, recessed mounted, or work as a pendant.
16. Edge-lit methods, with advanced light guide technology.
17. Low heat, and more enviornment protection.
18. No stroboscopic, no pollution, long lifespan, low luminous decay.
19. Quickly start (0.01second) and the light is natural and soft, appearance is exquisite.
Application: replacement for conventional Grille Lamp in Conference rooms, Offices, Commercial Complexes, Residential Buildings, Schools, Universities, Hospitals, etc.
- Place of Origin:
- China
- Brand:
- Stellaray
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 7 days
- Min Order Quantity:
- 2 pcs
- Keywords:
- led panel light, led panel, edge-lit led panel
