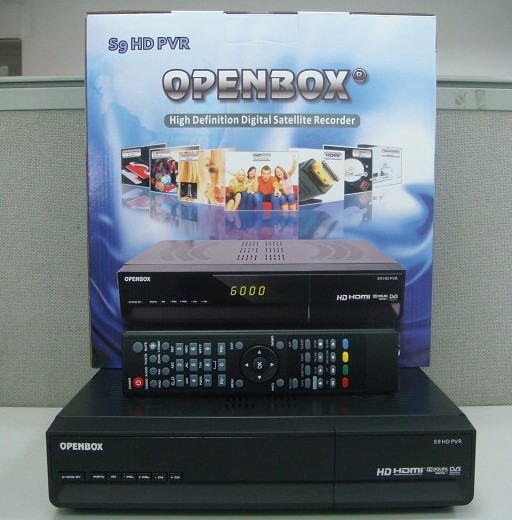

Openbox S9 Hd Pvr Fta Satellite Receiver
Openbox S9 Hd Pvr Fta Satellite Receiver, S9Item Code / Model Number:
S9
Openbox S9 Hd Pvr Fta Satellite Receiver
Kawi Permai Electronics
Jln. ABC No. 77
Bandung - 40111
Jawa Barat - Indonesia
Kawi Permai Electronics is a private wholesaler of consumer electronics. It is well-known for its entertainment systems of home and. Kawi Permai Electronics is based in Bandung. Operating more than 5 years, the company today has 3 brach store. Those are located in Garut, Cianjur and Jakarta
Kawi Permai Electronics offers various choices of home appliances in its stores, whether in Bandung, Garut, Cianjur and Jakarta
Kawi Permai Electronics also gives you the huge range of prices. Yes, Kawi Permai wants the consumers enjoy the lowest price, everyday.
Features:
-Receive Digital High Definition (HD) and Standard Definition (SD) Satellite Signal
-Supports DVB-S, DVB-S2, MPEG-2 & MPEG-4 (does not support 4:2:2 video)
-Digital Video Recorder through USB (external flash or hard drive not included)
-Worldwide compatible
-Hardware Blind Search DVB-S and DVB-S2
-STB main IC solution is ALI , demodulator model is M3501 from Ali
-HD DVB-S2 SHARP 7306 Tuner
-Multilingual support on screen menu (OSD):
-300 MHz MIPS Processor - Linux OS
-Fully compliant MPEG-4 H.264/AVC Main Profile Level 3 & High Profile Level 4.1;
-Fully compliant MPEG-2 MP@HL & MP@ML;
-Fully compliant MPEG-1 Layer I & II & III,
-Dolby Digital Audio(AC3)
-SCPC & MCPC receivable from C/Ku band satellites
-Multiple LNB-Switching control (supports DiSEqC1.0/1.1/unicable)
-Motor Support: DiSEqC 1.2/1.3 (USALS - GoTo X)
-HDMI 1.3 output (HDMI cable not included)
-PVR (store on USB external disk)
-Multimedia files playback (by USB);
-7 Days Electronic Program Guide (EPG)
-Teletext and subtitle out through OSD
-Multi-lingual DVB subtitle and teletext
-Automatic and Manual Channel Scan, Automatic Service Scan
-NIT search, Hardware BLIND SEARCH
-Fast channel switching < 1 second
-OSD in many languages and skin-support
-Multilingual support on screen menu (OSD)
-Multiple display mode: 1080i/720p/570p/576i/480p;
-Videotext Decoder
-Analog RCA audio output: stereo (L+R);
-Digital audio output: S/PDIF by coaxial
-S/PDIF Interface for digital bit stream out (AC-3)
-YCbCr Component Video Output
-2 x Scart (RGB, FBAS or S-Video)
-Screen format: Auto, 4:3, and 16:9;
-Upgrade software through USB2.0 port
-Powerful user interface program management function, parent lock
-1x CI built-in
-1x CA (smartcard reader) built-in
-10/100Mbit Ethernet Interface
-US or Europe Power Cord
Technical Details:
TUNER
DVB-S,DVB-S2
Input Frequency:950~2150MHz
Loop Out Frequency:950~2150MHz
Input Level:-65~-25dBm
Input Impedance:75¦¸
LNB Power: Auto/14v/18v/OFF, Imax = 500mA
VIDEO DECODER
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
AUDIO DECODER
Audio Compression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
OUTPUT DIGITAL
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output
VIDEO PARAMETER
Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart
Output: FBAS, RGB, S-Video
Serial Interface RS 232
RS232 bidirectional
Bit rate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function: Update of Firmware
ETHERNET
10/100 MBit compatible interface
Function: Update of Firmware
USB
1 x USB 2.0 Host, PVR
LNB POWER AND POLARIZATION
LNB Current 500mA max.
short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
PHYSICAL SPECIFICATION
Ambient Temperature +15 °C...+35 °C
Humidity < 80%
Size (W x D x H): 300 mm x 220 mm x 56 mm (12in x 8.7in x 2in)
Weight: 1,8 kg (4 lbs) without HDD
- Place of Origin:
- Korea
- Brand:
- Openbox
- Unit Price:
- USD 76.95
- Price Terms:
- CIF Bandung
- Payment Terms:
- T/T;Cash
- Delivery Time:
- 4 days
- Min Order Quantity:
- 20 Units
- Keywords:
- fta receiver, satellite receiver, receiver
