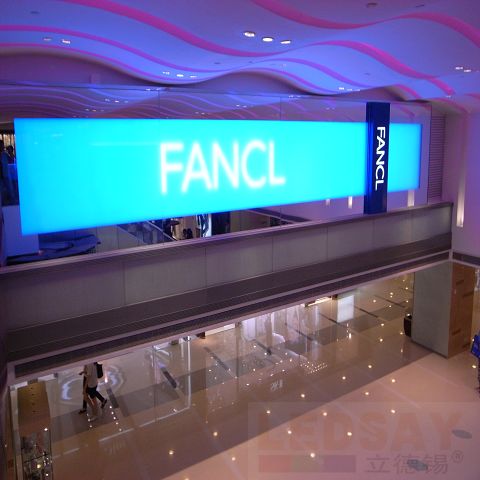

Indoor Full Color Led Display

Program Parameter
Pixel pitch 10mm
Module size (mm) 160*320mm
Physical density (dots / ㎡) 10000
Color light-emitting points 1R1G1B
LED package SMD
LED Light Model 3258
Display resolution 16*32
Best viewing distance 10m
Best view Parallel140°，Vertical110°
Average power consumption (w / m) 400
Drive 1/8
Frame rate ≥60hz/s
Refresh Rate ≥400hz/s
White Balance Brightness (cd / ㎡) ≥900
Operating temperature –10℃~+35℃
Operating voltage 220±10% or 110±10%
Gray / Color 1024Level
Effective communication distance "Six categories of unshielded twisted pair cable transmission over a distance of 100 meters, up to 140 meters. Up to 500 meters of multimode fiber, single mode fiber up to 20km
"
Input signal "RF, S-VIDEO, RGB, RGBTV, YUT, YC, COMPOSITION
"
Control system "Send card (master card) + receiver + DVI Graphics Card + Adapter + PCTV non-linear editing video card + multi-function card + processor + transmission line (optional)
"
MTBF ≥5000
Life 100000hours
