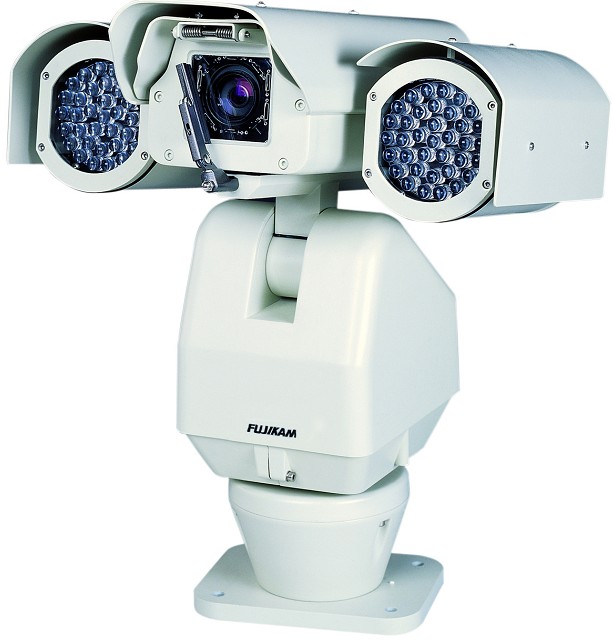

High Speed Ptz Cctv Camera

High Speed PTZ cctv Camera
PTZ control camera
360 degree infinite rotary high speed ptz camera
CE,FCC,ISO9001
High Speed PTZ cctv Camera,high focus cctv camera
*Completely resolved quickly without light at night to capture objectives
*infrared night vision distance is more than 100 meters
*High-strength aluminum alloy casting, heat, corrosion resistance
*Weather Environmental Design, protection class IP66
*360 ° infinite rotary
*viewing angel: +33 ° ~ -70 °
*128-bit and 6 preset patrol paths
*Resist dust and fog, defrost function
*OSD menu, 2 alarm input
Model FI-9100C
Image sensor 1 / 4''Exview HAD CCD
Effective Pixels 752H × 582V
Synchronization System Synchronization within or outside the synchronization
Video Output VBS 1.0Vp-p/75Ω
White Balance Auto / Manual
Scanning System 15.625KHz (H) 50Hz (V)
Horizontal resolution 480TVL
SNR > 50dB
Electronic shutter 1 / 1 ~ 1 / 10, 000s
Minimum illumination 0.01Lux
Focal length f = 4.1 ~ 73.8mm
Zoom Optical 18 times, 12 times the number
Iris & Zoom Auto / Manual
Preset speed level 90 ° / S (wind speed less than 50 miles / hour)
Preset speed up and down 30 ° / S (wind speed less than 50 miles / hour)
Level of manual control speed 0 ° ~ 40 ° / S
Speed up and down manual control 0 ° ~ 20 ° / S
Horizontal angle 360 ° infinite position
Up and down angle + +27 ° ~ -73 °
Preset position, visit track 128 preset position, six patrol track
Control RS485, built-in 16 kinds of protocols,
baud rate selectable from 2400Bps to 19200Bps,
RS485

Operating Temperature -35 ° C ~ 55 ° C
Relative humidity 0.9
Protection class IP66
Power supply AC24V
Power 70VA
Weight 13KG
