Fiber Cleaver

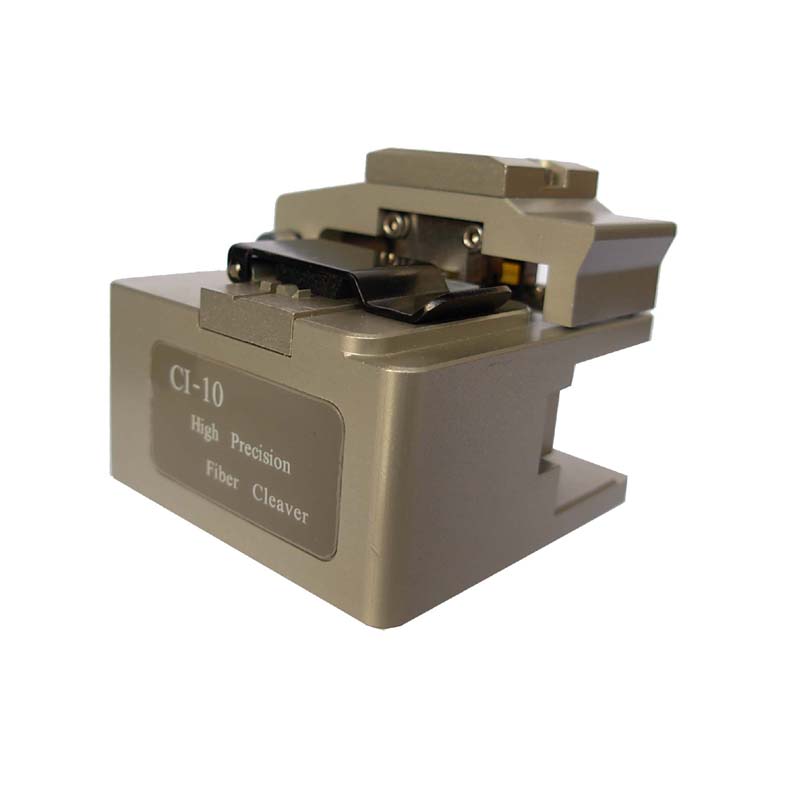

CI-10 Fiber Cleaver

Product Description:

Cleaver CI-10 is fully applicable for high precision preparation for single fibers and ribbon fiber cables (up to fiber counts 12).

Key Features:
Stable Operation with Multi-Action Process
Typical cleave Angle: 90 degree + (-) 0.5 degree
Compact and Handy Outfit Design
Configuration: Single (250-900mm). Ribbon (2-12)
High Precision Cleaving Blade with 16 Cleave Spots
Scratch-free Anodized Body Surface
Adjustable Cleave Length: 5-20mm
Simplified Blade Adjustment and Replacements
Built-in Maintenance Tool Attached: On the Bottom

Technical Parameters & Specifications:
Fiber Diameter: 125 micron
Coating Diameter: 250-900 micron
Cleave Angle: 90 + (-) 0.5degree
Cleave Length: Single 5-20mm
Blade Lifetime: 48.000 cleaves
Outfit Dimension: 58*55*48(mm)
Weight: 360g
