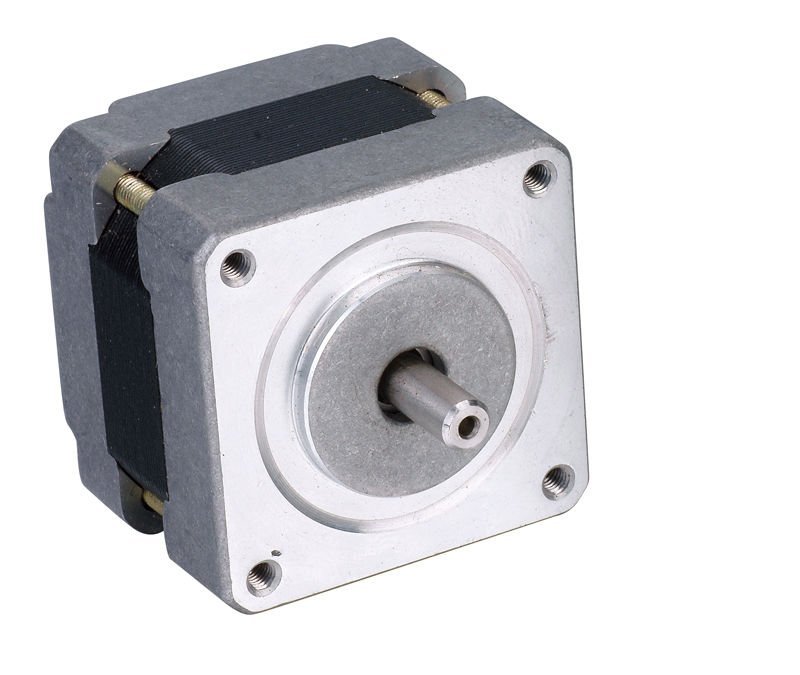

High Efficiency Hybrid Stepping
High Efficiency Hybrid Stepping, 39HY0101Item Code / Model Number:
39HY0101
High Efficiency Hybrid Stepping
high efficiency,energy-saving,low noise and stable performance
1. Length of the motor: 20mm
2. No. of Leads: 4
3. Holding torque: 1kg.cm
4. Rated Voltage: 12V
5. Current: 0.48A
6. Resistance: 25Ω
7. Inductance: 26mH
8. Detent torque: 50g.cm
9. Weight: 0.12kg
Our mainly product is hybrid stepping motor and motor drivers.
Typical applications: office automation, medical equipment, textile machinery, safety, lighting of stage, robot, vending and ticketing, automotive etc.
Please contact with us for more detailed technical information.
Note:We also can design according to clients' requirement
thank you!
1. Length of the motor: 20mm
2. No. of Leads: 4
3. Holding torque: 1kg.cm
4. Rated Voltage: 12V
5. Current: 0.48A
6. Resistance: 25Ω
7. Inductance: 26mH
8. Detent torque: 50g.cm
9. Weight: 0.12kg
Our mainly product is hybrid stepping motor and motor drivers.
Typical applications: office automation, medical equipment, textile machinery, safety, lighting of stage, robot, vending and ticketing, automotive etc.
Please contact with us for more detailed technical information.
Note:We also can design according to clients' requirement
thank you!
- Packing:
- CARTONS
- Payment Terms:
- L/C;T/T
- Keywords:
- stepper, synchronous, solenoid
