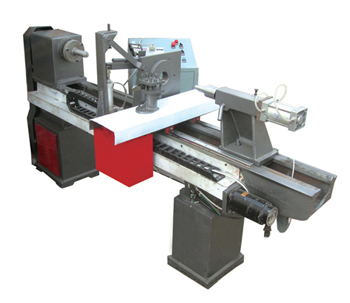

Cnc Wood Lathe (f-mc1318)

It could turning the following objects,
Staircases/Stairway Balusters/Stairway Newel Posts; Dining Table Legs; End Table Legs; Sofa Table Legs; Bar Stool Legs; Chair Legs; Chair Arm Posts; Chair Stretchers; Sofa/Bun Feet; Bed Rails; Lamp Posts; Baseball Bats and so on.

Advantages of F-MC1318 CNC Wood Lathe
(1). This machine with one spindle and one tool. Besides, it has a roughing tool.
(2). Imported square rail and ball screws, which are more stable and high precision.
(3). Adopt high-strength integral cast irons with good strength and rigidity, small angle deformation and strong vibration resistance.
(4). DSP control system with USB interface. The machine could be controlled by the handle directly.
(5). Turning speed and feeding speed could be adjusted when machine working, and it will not affect the processing effect.

Video of the machine: (Please open them in https://www.youtube.com )
https://www.youtube.com/watch?v=MLTEqefClyU
https://www.youtube.com/watch?v=sQCWVjYfaj0

Parameter:
(1). Model: F-MC1318
(2). Max.turning length: 1300mm(51.1inch)
(3). Max. turning diameter:1800mm (70.8inch)
(4). Spindle power: 2.2kw
(5). Quantity of tools: 1
(6). Quantity of spindle: 1
(7). Max.feed speed: 35mm/s
(8). Spindle speed: 1000-2880rpm
(9). Accuracy:0.00125mm
(10). Control system: DSP, USB interfact
(11). Support command: G code
(12). Software: Rhino software
(13). Voltage: 380V/50Hz
(14). Machine dimension: 2800*1200*1300mm (110.2inch*47.2inch*51.2inch)
(15). Weight: 800kg

Optional part:
(1). Dust collect, which is used to collect the wood exhaust.
(2). Memory function. The machine could go on working from the break point in case of power off or other reason. This function based on imported approach switches.

Consumable parts:
We suggest customers buy more consumable parts for future use.
(1). Tool. This machine use white steel tool. Customers could change the tools easily.
(2). Bearing. Customers could change the bearing easily.
