Sm60nc

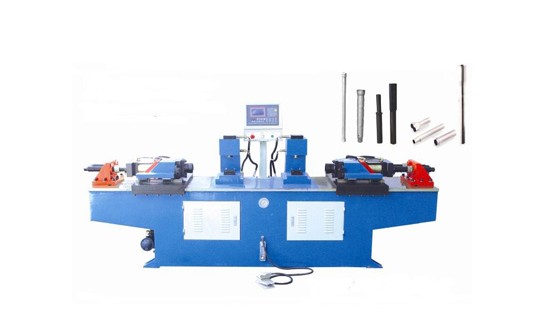

SM60NC hydraulic automatic pipe end forming machine, with the straight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in iron pipes, furniture, automobile air conditioners and fuel oil pipes.

Max processing capability:Φ60mm×2mm
Max processing length:130mm
The distance of double head:200
Oil pressure：12Mpa
Working speed：100mm in 3-4/s
Size：2000mm x 600mm x 1400mm
Weight：1300kg
Remark：1.The max processing length can according to customer’s
requirement
2.The distance of double head can according to the customer’s requirement
