Fiber Optic Cable Gyxtw

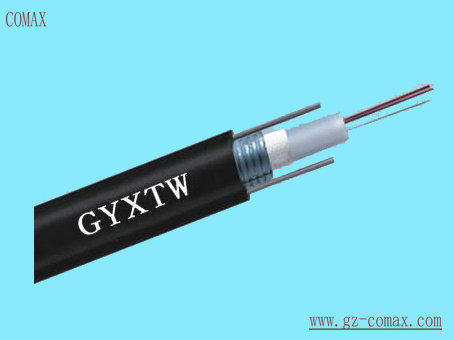

Central Loose Tube Outdoor Aerial optic Fiber Cable (GYXTW)

We can supply various kinds of fiber optic cable, such as GYXTW(S)(Y), GYTS(GYTA), GYXTC8(GYTC8S), GYFTY(GYTY), GYTA(S)(Y)53, ADSS, GJFJV, etc. We can also provide OEM service and welcome customer's design.

GYXTW standard armored fiber optical cable

Quality certification:
ISO9001 SGS certification

Production Description:
Feature:
1. Up to 144 fibers.
2. The PBT loose tube stranding technology control the exact length of tube, to make sure the good pulling resisting and temperature characteristic, and the ointment filled lossely tube for good protecting tube.
3. PE sheath with good UV resisting and protecting cracking as surrounding.
4. Single strength steel member, fill fiber compound, PSPwrapped (polyethylene steel tape), good water-resisting material.

Application:
Used for cable can be used in Telecommunication, Video, Data Transmission, Data Transmission, CATTV, Long Distance, Backbone, Local Area Network.

Other Outdoor Optical Fiber Cable types:
GYTA33
GYTA53
GYTA
GYDTA
GYTS
GYTY53
GYTC8S
GYXTC8S
GYTC8Y
GYFTC8Y
GYXTW
GYDXTW

Technology paramter:


Central unitube cable
General properties unit Nominal value
Fiber Count (G652D) 4 8 12
Loose tube diameter mm 3.0 3.0 3.0
Water blocking tape mm 0.2
Armor tape:
PE coated corrugated steel tape PE coated corrugated steel tape
Steel tape 0.15mm, Coated PE 0.05MM
Strength member( steel wire) 1.0mmX2
Outer sheath thickness(PE) 2.3 2.3 2.3 2.3
Cable OD MM 10.9 10.9 10.9 10.9
Cable weight Kg/km 119 119 119 119
Max.allowable pulling force N 2000
Crush resistance N/10cm 800
Working conditions
Temperature range: Transport and storage:-40 deg C to +70deg c
Installation:-10deg C to +60deg C
Operation:-40 degC to+70 degC Minimal bending radius:
Installation: 20XOD
Work condition:10xOD
