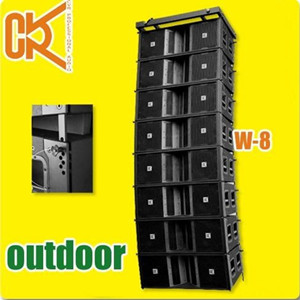

Professional Line Array Speaker(ce, Rohs) W8

1.line array speaker
2.all neodymium drivers
3.Birch plywood,Water-proof
4.CE,ROHS certifica
5.good after-sales service...
Model W-8

Type Line array system
Frequency Response 45Hz-20KHz±3dB

Directivity index(DI) 12(±2)1.2KHz-16KHz
Power handling LF 1200W(RMS)2400W(PEAK)
MF 600W(RMS)1200W(PEAK)
HF 200W(RMS)400W(PEAK)
Sensitivity LF 101dB(1W1M)
MF 104dB(1W1M)
HF 111dB(1W1M)
MaxS.P.L LF 132dB(PEAK/1M)
MF 132dB(PEAK/1M)
HF 134dB(PEAK/1M)
LF section 2×12" (310mm)neodymium woofer
75mm(3in) coil
Nominal impedance
8 ohm
MF section 4×6.5" (170mm)neodymium MF
50mm(2in)coil
Nominal impedance 16 ohm
HF section 2×3"neodymium compression driver
with 75mm titanium diaphragm
Nominal impedance 16 ohm
Output section 3-channel
Dispersion pattern 110°H×7.5°V
Finish Water-proof,wear-resistant textured black paint
Array design Arrays of less than 3×CV-8 will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables LF 1(+)1(-) 2(+)2(-) MF 3(+)3(-) HF 4(+)4(-)
Rigging system Please refer to the CV-8 user
manual before any operation
Input connectors 2×Neutrik NL8
Recommend crossover LF 45Hz-400Hz
MF 400Hz-1200Hz
HF 1200Hz-20KHz
Dimensions 1100×405×595mm(W×H×D)
Package dimensions 1170×475×665mm/0.37cbm
Enclosure Birch Plywood
Net weight 65kg
Gross weight 69kg
