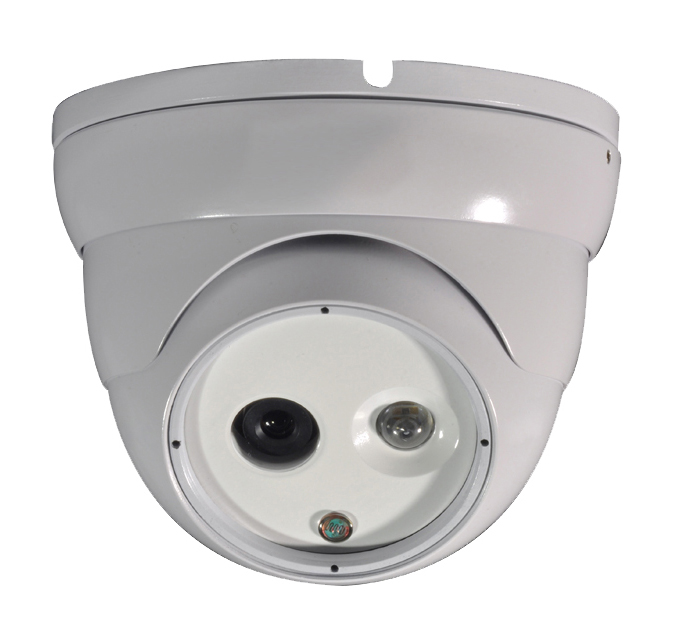

Hes-63163
Hes-63163Item Code / Model Number:
Hes-63163
Model No. HES-63163 HES-63363 HES-63663 HES-63863
CCD Type 1/4" Sharp Color CCD 1/3" Sony EX-VIEW CCD 1/3" Sony EX-VIEW CCD 1/3" Sony Super EX-VIEW CCD
Solution DSP LR38627 + CCD RJ2421 DSP CXD3142R + CCD ICX633BK DSP CXD3172R + CCD ICX633BK DSP CXD3172R + CCD ICX639BK
Pixels PAL: 512H x 582V, NTSC: 512H x 492V "PAL: 752H x 582V, NTSC: 768H x 494V
"
Scanning System PAL/NTSC
Horizontal Resolution 420 TVL 480 TVL 540 TVL
Minimum Illumination 0 Lux (IR on)
SNR ≥ 48 dB
Video Output 1 V/p-p, 75 Ω
AGC Auto
Backlight Compensation Auto
White Balance Auto
Exposure Mode EE
Electronic Shutter 1/50(PAL) / 1/60(NTSC) ~ 1/100,000 second
Gamma Correction 0.45
Sync. System Internal Synchronization
IR LED LED Array
IR View Distance Depends on the lens, 5 ~ 20 m
IR Power On CDS Auto Control
Lens Standard: 3.6 mm, Optional: 6 mm single-board machine lens
Power Supply DC 12 V, ≤ 420 mA
Operation Temperature -20 ~ +50 degree centigrade
CCD Type 1/4" Sharp Color CCD 1/3" Sony EX-VIEW CCD 1/3" Sony EX-VIEW CCD 1/3" Sony Super EX-VIEW CCD
Solution DSP LR38627 + CCD RJ2421 DSP CXD3142R + CCD ICX633BK DSP CXD3172R + CCD ICX633BK DSP CXD3172R + CCD ICX639BK
Pixels PAL: 512H x 582V, NTSC: 512H x 492V "PAL: 752H x 582V, NTSC: 768H x 494V
"
Scanning System PAL/NTSC
Horizontal Resolution 420 TVL 480 TVL 540 TVL
Minimum Illumination 0 Lux (IR on)
SNR ≥ 48 dB
Video Output 1 V/p-p, 75 Ω
AGC Auto
Backlight Compensation Auto
White Balance Auto
Exposure Mode EE
Electronic Shutter 1/50(PAL) / 1/60(NTSC) ~ 1/100,000 second
Gamma Correction 0.45
Sync. System Internal Synchronization
IR LED LED Array
IR View Distance Depends on the lens, 5 ~ 20 m
IR Power On CDS Auto Control
Lens Standard: 3.6 mm, Optional: 6 mm single-board machine lens
Power Supply DC 12 V, ≤ 420 mA
Operation Temperature -20 ~ +50 degree centigrade
- Place of Origin:
- China
- Brand:
- Oem
- Packing:
- gift box
- Payment Terms:
- T/T
- Standard / Certificates:
- FCC ROHS
- Keywords:
- led array ir camera, cctv camera, surveillance
