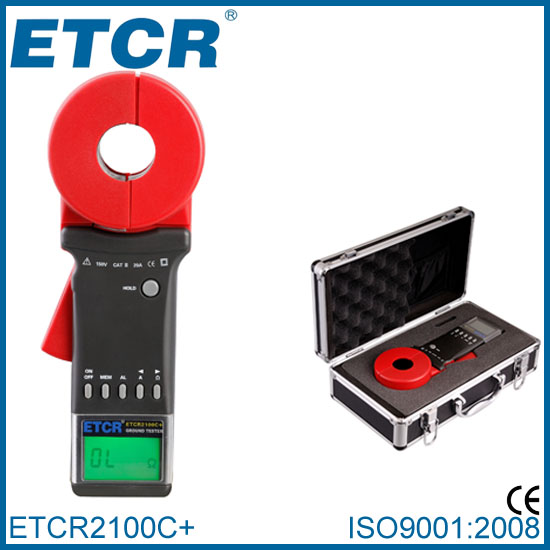

Earth Ground Resistance Clamp Tester
Earth Ground Resistance Clamp Tester
Earth Ground Resistance Clamp Tester
Features:
Widely applied in ground resistance measurement, loop resistance measurement
With optional function of RS232 interface data upload
No need to disconnect the ground wire from the ground net
Without auxiliary electrode
High accuracy and resolution of resistance
Current leakage detection
With data memory
Automatic power off
Specifications:
Clamp size: diameter 32mm
Resistance range: 0.01 to 1,200Ω
Resistance resolution: 0.001Ω
Current range: 0.00mA to 20.0A
Current resolution: 0.05mA
Data memory: 99 sets
Alarm setting: 1 to 199Ω
Quick boot: in 0.5 second
Lower consumption: less than 50mA
Auto power off: after 5mins of idleness
Widely applied in ground resistance measurement, loop resistance measurement
With optional function of RS232 interface data upload
No need to disconnect the ground wire from the ground net
Without auxiliary electrode
High accuracy and resolution of resistance
Current leakage detection
With data memory
Automatic power off
Specifications:
Clamp size: diameter 32mm
Resistance range: 0.01 to 1,200Ω
Resistance resolution: 0.001Ω
Current range: 0.00mA to 20.0A
Current resolution: 0.05mA
Data memory: 99 sets
Alarm setting: 1 to 199Ω
Quick boot: in 0.5 second
Lower consumption: less than 50mA
Auto power off: after 5mins of idleness
- Place of Origin:
- Guangzhou, China
- Brand:
- Etcr
- Payment Terms:
- ;T/T
- Delivery Time:
- 3
- Min Order Quantity:
- 1 piece
- Standard / Certificates:
- ISO, CE
