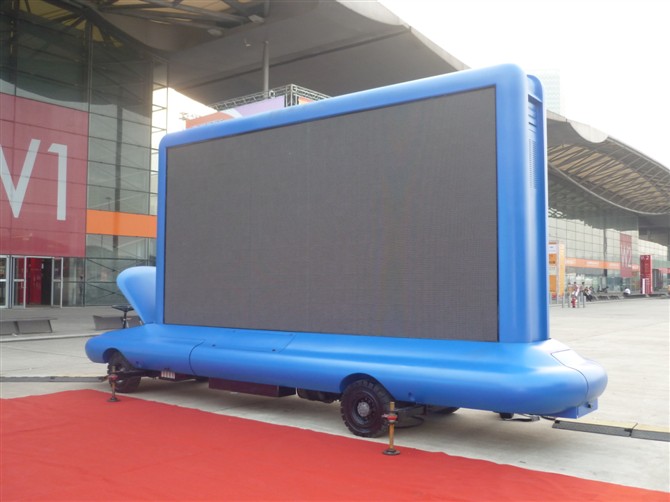

Sell P10 Outdoor Full Color LED Trcuk Display
Sell P10 Outdoor Full Color LED Trcuk DisplayContinuous Selling Item
Sell P10 Outdoor Full Color LED Trcuk Display
P10 Outdoor Full Color LED Display
- LED Technical Parameter:
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Pixel Density 10000dot/㎡
4 Encapsulation DIP 346.
5 LED Chips Blue / Green: Silan LED Chip & Red : Taiwan OPTO LED chip.
6 LED Wave length R: 622 nm / G: 525nm / B: 465 nm
7 LED Brightness R: ≥800mcd / G: ≥1800mcd / B: ≥350mcd .
- Module
1 Module Dimention 160mm×160mm
2 Module Pixel: 16x16= 256 ( dot )
- Cabinet
1 Consumption: 500W/ m2
2 Size / Weight: 960×960mm.
3 Cabinet Material can prevent static and the disturbance from electromagnetism.
- Display
1 Final Screen Size ( L ) x ( H ) = m2
2 Total Pixel dots.
3 Brightness ≥6500 cd/ m2
3 Driving Mode: Constant current drive, scan method: 1/4 scan
4 Driving Chip Taiwan MBI, 5026
5 Frame rate 60Hz
6 Refresh rate ≥600Hz
7 Control Method PC control, display synchronously with PC monitor.
8 Display Port VGA/VIDEO/S- VIDEO/COMPOSITE
- LED Technical Parameter:
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Pixel Density 10000dot/㎡
4 Encapsulation DIP 346.
5 LED Chips Blue / Green: Silan LED Chip & Red : Taiwan OPTO LED chip.
6 LED Wave length R: 622 nm / G: 525nm / B: 465 nm
7 LED Brightness R: ≥800mcd / G: ≥1800mcd / B: ≥350mcd .
- Module
1 Module Dimention 160mm×160mm
2 Module Pixel: 16x16= 256 ( dot )
- Cabinet
1 Consumption: 500W/ m2
2 Size / Weight: 960×960mm.
3 Cabinet Material can prevent static and the disturbance from electromagnetism.
- Display
1 Final Screen Size ( L ) x ( H ) = m2
2 Total Pixel dots.
3 Brightness ≥6500 cd/ m2
3 Driving Mode: Constant current drive, scan method: 1/4 scan
4 Driving Chip Taiwan MBI, 5026
5 Frame rate 60Hz
6 Refresh rate ≥600Hz
7 Control Method PC control, display synchronously with PC monitor.
8 Display Port VGA/VIDEO/S- VIDEO/COMPOSITE
- Place of Origin:
- China
- Brand:
- LEDWAY
- Unit Price:
- USD 1000-1600
- Port:
- FOB Shenzhen
- Packing:
- inner: foams outter: wooden case
- Payment Terms:
- ;T/T
- Delivery Time:
- 15-25
- Min Order Quantity:
- 1 square meter
- Standard / Certificates:
- CE ,RoHS
