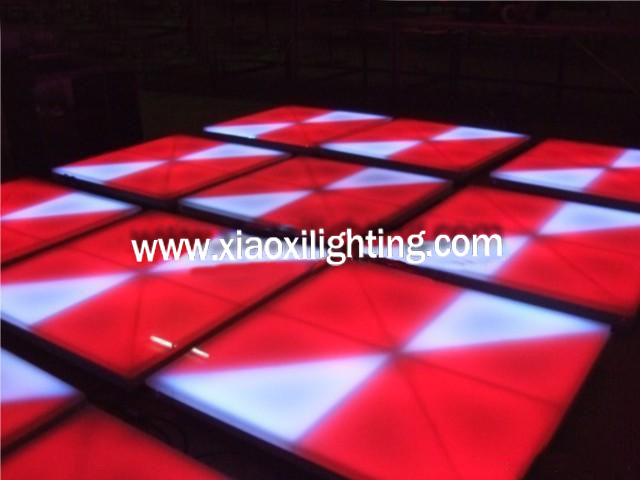

Led Dance Floor

LED dance floor(SSL-81)

Model: SSL-81

Specification:

1.Led diameter:5mm
2. Led quantity:960PCS(R: 384, G: 288, B: 288)
3. Cover board: 12mm or15mm Acrylic, supports up to 800 kgs.
4. Control feature: USITT DMX-512
5. Channel quantity: 27 Channels
6. Display panel:4 digital LED display
7. Signal line: 3 pin XLR serial input/output
8. Power line:3 pin power supply input/output
9. Input voltage: AC100-240V/50-60Hz,
10. Fuse: 3.15A
11. Max power consumption: 80VA
12.Working temperature: -22℃ - +85℃
13.Protection level: IP22
14.Control Mode:DMX512, Stand alone and master/slave, Auto, sound-activated

14.standard unit size:100cm*100cm*10cm(L*W*H)
15.carton packing size:108cm*108cm*17cm ,
16.Double flight case size:1160*1100*480mm, the weight:35kgs


17.Net weight:32kgs
18. gross weight of carton paking case:35kgs
19.case gross weight of flight case packing :101kgs
