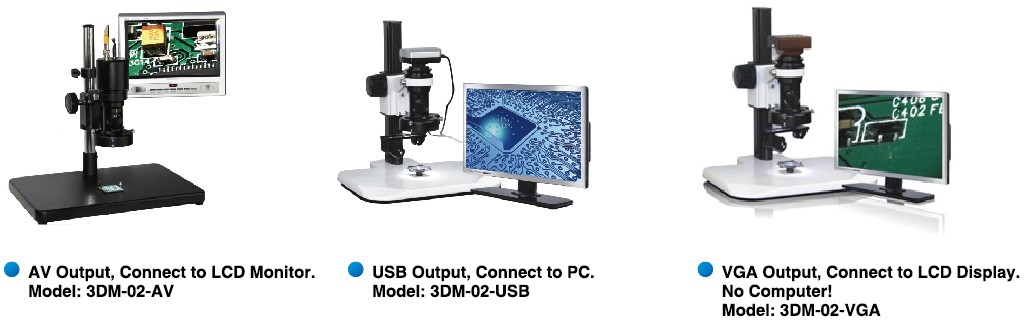

2d/3d Video Microscope Av

Features: High Definition. High Resolution, Real Time Measurement and Image Management, Quality Inspection or Research and Development, Need Computer, All Kinds of Optional Accessories.
3DM-02 Microscope features the quality optical system,low distortion, high resolution,flat and large field of view, high depth of field and superior parfocality. The novel design and one-up technology make it easy for operation.
The 2D/3D angle lens attachment is changed manually from two-dimensional image to three-dimensional. The microscope can realize 3D image effects for observing the components and deep holes. It remains the same superior resolution and the central position keeps consistent.
The 3D 36 degree rotary observation lens can achieve 95mm (Max) working distance,which is the highest level in the world so far. Digital and Analog video systems can meet the different users'demands.The 3DM-02 Microscope can be widely used in micro-electronics, precision electronic inspection and PCB solder testing industries.
HT-108 Zoom Microscope Body
Large field of view Low distortion and high resolution, Flat and high depth of field (equal or more than 6mm) Auto-focus for different digital and analog camera Compact, practical and cost-effective HT-108 Zoom Microscope can be widely used in machine version, semi-conductor and micro-electronics inspection and solder testing industry. The Zoom lens is designed with high resolution and clear image. When the manual zoom with detents is used in measuring systems, the calibration of magnification is needed, and the pre-set stops are at 0.3X, 0.5X,1X, 1.5X, 2.2X. By selecting the appropriate objectives, different magnification, field of view and depth of field can be acquired.
