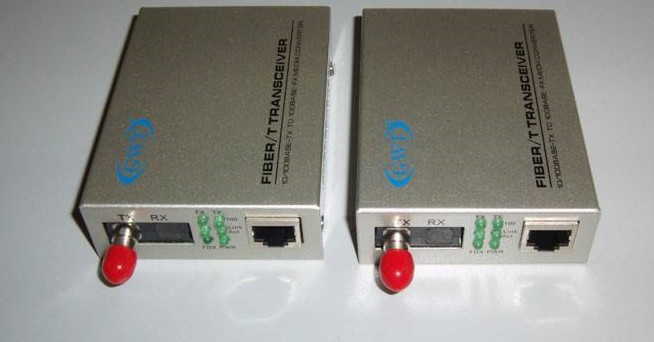

Fiber Media Converter, Ethernet Media Converter, Single Mode

10/100Base TX + 100Base FX WDM media converter model No. GWT10100S

Features:
◆Auto learning, auto updating, auto stocking and auto transmitting
◆Ethernet 10Base-T or 100Base-TX to 100Base-FX with optical fiber cable as medium
◆Providing hot plug-draw performance
◆Using particular switch chip design with 1M SSRAM buffer,2K MAC address list
◆Full duplex and semi-duplex is available with auto negotiation
◆Have one RJ-45 port and one fiber connector
◆Providing 10Mbps and 100Mbps auto negotiation (reaching to 200Mbps in duplex)
◆Good optical FX characteristic and TX characteristic
◆Providing long-distance TX and TX characteristic to ensure stability of data transmitting, long lifespan
◆Providing RJ-45 NIC and HUB, using NIC to connect with computer
◆Working time without any trouble is more than 50 thousand hours

Specifications:
Protocol IEEE802.3 IEEE802.3u IEEE802.3x
Fiber port SC/ST
Copper port one Port
Network Cable 2pairs of category 5 UTP (Max:100m)
Fiber optic cable SMF：8/125,9/125,10/125μm (20/40/60/80/100Km)
Dimensions(WxDxH) 95x71x26mm
