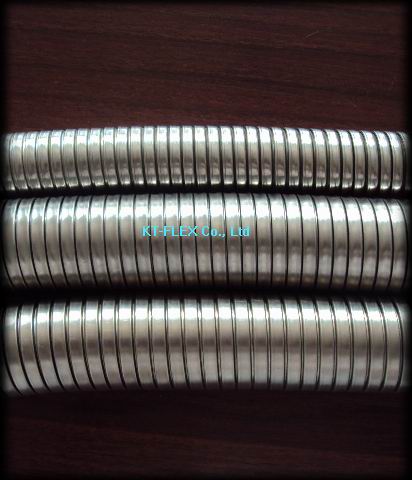

Plain Flexible Conduit

S series:
Material: Zinc-plated steel
Protection rating: IP40
Working temperature: 0℃～300℃
Compression strenth (20mm): 2400N at 10% permanent deformation over 50mm length
Pull off strenth of conduit (20mm): 1500N
Item NO. Normal Size I.D(mm) O.D(mm) Bending Radius (mm)
Zinc-plated Steel Inch Latus Rectum (mm)
S006 3/16" Φ6 5.70-6.00 8.20-8.50 22.5
S007 1/4" Φ8 7.75-8.25 10.75-11.25 22.5
S008 5/16" Φ10 9.70-10.00 13.20-13.50 30.0
S010 3/8" Φ12 11.65-12.35 14.65-15.35 30.0
S011 1/2" Φ15 14.50-15.50 18.50-19.50 40.0
S012 3/4" Φ20 19.00-20.00 22.70-23.70 50.0
S013 1" Φ25 24.50-25.50 29.00-30.00 52.5
S014 1-1/4" Φ32 31.50-32.50 37.00-38.00 80.0
S015 1-1/2" Φ38 37.40-38.60 43.90-45.10 90.0
S016 2" Φ51 50.00-52.00 56.50-58.50 95.0
S017 2-1/2" Φ64 62.50-65.50 70.50-73.50 140.0
S018 3" Φ75 73.00-77.00 81.00-85.00 160.0
S019 4" Φ100 98.00-102.00 106.00-110.0 190.0
