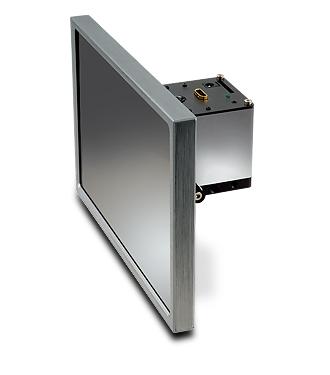

Sell 10inch LCD HD Tablet Microscope Camera. Inspection Camera

10inch LCD HD Microscope Camera. Inspection Camera

Model Number: KLN-CMC-LCD10



Description:

Our cameras are with C mount or CS mount. They can be used in mainly two fields, industrial machine vision image and microscope image. For industrial machine vision, it is always mount a CS lens with the camera. And for microscope image, it can be mounted in C mount of microscope or be mounted a adapter lens to put into the tube of eyepiece or trinocular. We also have a digital camera for telescope, slit lamp, hardness tester etc.



Features:
1280 x 800 resolution @ 60 fps (24-bit)

1/2.5inch CMOS

Image Capture without a PC

LVDS output with wide screen format

Multiple cross hairs for quick gaging

Dual interface (SD/USB combo) memory card allows you to conveniently transfer files without the need of a SD card reader on your PC

Super easy auto-white balance for color accuracy

Wireless remote with control functions; R.G.B, gain, cross hair generator, exposure, image capture, ans sharpening.

Specifications:

Model Number

KLN-CMC-LCD10

Sensor

CMOS; 1/2.5 inch

Resolution

1280 x 800 @ 60 fps (24-bit)

Aspect Ratio

16:10

Frame rate

60fps

Pixel

2 mega pixel (2.8um x 2.8um)

Color

RGB (individual adjustment)

White balance

Auto/manual

Exposure

Auto/manual

Contrast

Manual

Memory slot

SD (Up to 32G)

Memory card

SD/USB 2.0 Dual-Interface included

Cross hair grid

Up to 4 horizontal and 4 vertical

Lens mount

C-Mount

Power

12VDC
