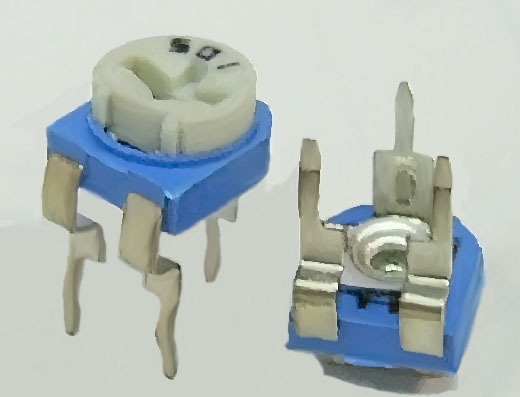

6mm Carbon Film Trimmer Potentiometers
6mm Carbon Film Trimmer PotentiometersContinuous Selling Item
6mm Carbon Film Trimmer Potentiometers
Total Resistance: 100Ω~2MΩ Total Resistance Tolerance: 1KΩ~500K= +-25%, >=500K +-30% Resistance Taper: B Lin Max. Operation Voltage: Linear Taper AC 50V Rated Power: Linear Taper 0.10W Insulation Resistance: More than 100MΩ at DC 100V Withstand Voltage: 1 Minute at AC 100V Residual Resistance: Term 1~2 Less than 30Ω5% Term 1~3 Less Than 30Ω5% Total Rotational Angle: 200 Degree +- 20 Degree Mechanical Rotation Angle: 210 Degree +- 15 Degree Rotational Torque: 20gf.cm~200gf.cm Rotational Stopper Strength: 0.5kgf.cm MAX Push-Pull Strength: 0.5kgf MAX
- Place of Origin:
- Taiwan
- Payment Terms:
- ;T/T
- Payment Remarks:
- in Advance
- Delivery Time:
- within 14-21 (after confirmation)
- Min Order Quantity:
- 1000 pcs
- Standard / Certificates:
- ETC
