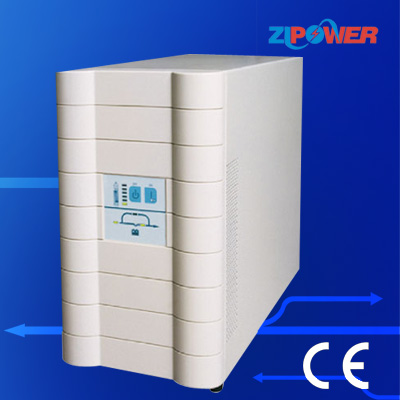

1k~3kva High Frequency Online Ups
1k~3kva High Frequency Online UpsItem Code / Model Number:
1k~3kva High Frequency Online Ups
Model:T1K T1KL T2K T2KL T3K T3KL
Capacity:1000VA/700W 2000VA/1400W 3000VA/2100W
Input Voltage: 115~300 VAC
Frequency: 46~54Hz/56~64Hz
Output Voltage: 220/230/240 (1±1%) VAC
Frequency: 50/60Hz (Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1±0.2%)
Output Wave Form: Sine Wave
Back-up Time Full Load
≥5′ Depends on the capacity of the external battery bank
≥9′ Depends on the capacity of the external battery bank
≥5′ Depends on the capacity of the external battery bank
Half Load: ≥14′ ≥21′ ≥15′
Battery Nominal DC Voltage: 36VDC 96VDC
Transfer Time: 0ms
Overload Capacity: 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications: RS-232+Intelligent Slot
Environment
Temperature: 0C~40C
Humidity: 15%~90%
Dimensions(L*D*H)mm: 145*400*220,192*460*340
Net Weight(Kg): 14.00, 7.00, 34.00, 13.50, 34.50, 14.00
Capacity:1000VA/700W 2000VA/1400W 3000VA/2100W
Input Voltage: 115~300 VAC
Frequency: 46~54Hz/56~64Hz
Output Voltage: 220/230/240 (1±1%) VAC
Frequency: 50/60Hz (Adjustable) 50Hz AC Mode: Follow AC Mode (AC Range 46~54Hz); Battery Mode: 50Hz (1±0.2%) 60Hz AC Mode: Follow AC Mode (AC Range56~64Hz); Battery Mode: 60Hz (1±0.2%)
Output Wave Form: Sine Wave
Back-up Time Full Load
≥5′ Depends on the capacity of the external battery bank
≥9′ Depends on the capacity of the external battery bank
≥5′ Depends on the capacity of the external battery bank
Half Load: ≥14′ ≥21′ ≥15′
Battery Nominal DC Voltage: 36VDC 96VDC
Transfer Time: 0ms
Overload Capacity: 110%~150% maintain 30s then turn to bypass output, over 150% maintain 300ms
Communications: RS-232+Intelligent Slot
Environment
Temperature: 0C~40C
Humidity: 15%~90%
Dimensions(L*D*H)mm: 145*400*220,192*460*340
Net Weight(Kg): 14.00, 7.00, 34.00, 13.50, 34.50, 14.00
- Place of Origin:
- China
- Brand:
- Zlpower
- Payment Terms:
- L/C;T/T;M/T;Cash
- Delivery Time:
- 5 days
- Min Order Quantity:
- 1pcs
- Standard / Certificates:
- CE,Rohs
- Keywords:
- high frequency ups, online ups, ups power supply
