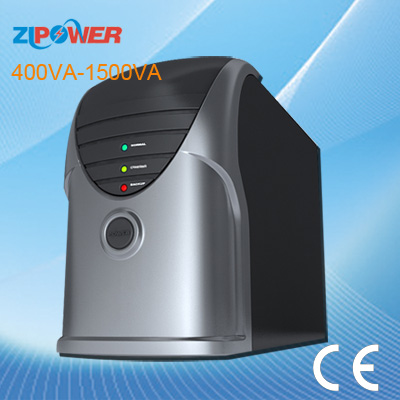

400~1500va Offline Ups For Pcs

MODEL: N400 N500 N650 N800 N1000 N1200 N1500 Nominal Capacity: 400VA/240W 500VA/300W 650VA/390W 800VA/480W 1000VA/600W 1200VA/720W 1500VA/900W Input Voltage Range: 145~280VAC/ 80VAC-150VAC Frequency: 50/60Hz Output Voltage Range: 220VAC/120VAC ± 10% Frequency 50Hz/60Hz ± 5% Output Waveform: Square Wave Transfer time: 10ms Battery Type: Sealed free maintenance lead acid battery Capacity 12V, 4AH *1PCS 12V, 7AH *1PCS 12V, 7AH *1PCS 12V, 9AH *1PCS 12V, 7AH *2PCS 12V, 9AH *2PCS 12V, 9AH *2PCS Recharge Time: 8 hrs to 90% of capacity full load discharge Protection: Auto protect Back-up time(Full load): 3~5 min 5~7 min 7~10 min 6~8 min 5~7 min 8~10 min 10-12min Function Auto voltage output on AC mode, Auto shutoff if short circuit or overload DB-9 port, communication software: Optional RS232, RJ11, RJ45, USB Protection AC mode: Fuse Short circuit AC: Fuse Invert mode: Auto protect Alarm Alarm Battery discharge: Alarm beeps every four seconds Low battery voltage: Alarm beeps every second Overload: Alarm beeps continuously Indicator light Auto adjust Green lighting: AC mode Battery Discharge Red lighting: Battery mode Environment Operating temperature: 0C~40C Operating Humidity: 0-90% non-condensing Noise: 35dB(1 meter distance) Dimension(L*W*H)mm:325*90*150, 335*100*150, 345*125*190 Net weight (N.W.): 4.50KG 6.50KG 6.80KG 7.50KG 11.00KG 12.00KG 13.00KG Gross weight (G.W.): 4.70KG 6.70KG 7.00KG 7.70KG 11.30KG 12.30KG 13.30KG
