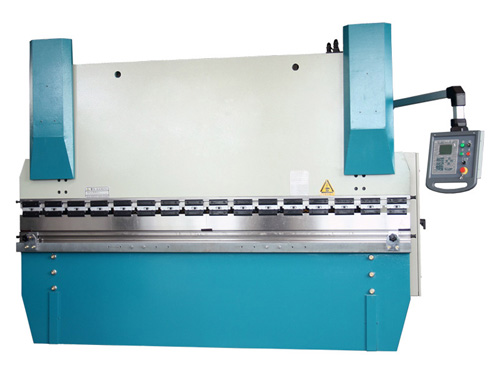

Wc67y-40ton Hydraulic Press Brake
Wc67y-40ton Hydraulic Press BrakeItem Code / Model Number:
Wc67y-40ton Hydraulic Press Brake
Item WC67Y-40Ton×2200mm WC67Y-40Ton×2500mm
Nominal force(KN) 400 400
Worktable length(mm) 2200 2500
Distance between holes(mm) 1850 1850
Depth of throat(mm) 230 230
Slider travel(mm) 100 100
Max open height(mm) 320 320
Main power(Kw) 5.5 5.5
Weight(KGs) 2750 3000
Overall dimension(L×W×H mm) 2200×1200×1910 2500×1200×1910
Press Brakes
- Place of Origin:
- China
- Keywords:
- press brake, bending machine, hydraulic press brake
