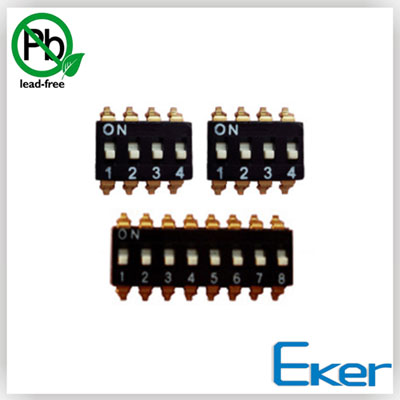

Sell DM Series SMT Dip Switches
Sell DM Series SMT Dip SwitchesContinuous Selling Item
Sell DM Series SMT Dip Switches
DM Series smt dip switch:
DIP SWITCH SOLDERING
Hand soldering:soldering iron 30W at under 350°C/3sec.Max.or at 270°C/5sec.Max.
Wave soldering:at 260°C/10sec.Max.
Reflow soldering:260°C±5°Cwithin 30 sec.in-line or Batch system.
L&G Type:un-washable & un-accept reflow process.
DIP SWITCH MECHANICAL
Operation Force: 500g max.
Operation Temp: -20°C to +70°C
Storage Temp: -40 °C to +85°C
Mechanical Life: 3,000 cycles
DIP SWITCH ELECTRICAL
Electrical Life: 2,000 cycles per switch 24VDC, 25mA
Non-Switching Rating: 100mA, 5000VDC.
Switching rating: 25mA, 24VDC.
Contact Resistance: 50mΩ max. at initial.
Insulation Resistance: (at 500VDC)1000mΩ min after life test
Dielectric Strength: 500VAC/1minute
dip switch
Many different kinds of dip switches, pls contact us for more detail information.
DIP SWITCH SOLDERING
Hand soldering:soldering iron 30W at under 350°C/3sec.Max.or at 270°C/5sec.Max.
Wave soldering:at 260°C/10sec.Max.
Reflow soldering:260°C±5°Cwithin 30 sec.in-line or Batch system.
L&G Type:un-washable & un-accept reflow process.
DIP SWITCH MECHANICAL
Operation Force: 500g max.
Operation Temp: -20°C to +70°C
Storage Temp: -40 °C to +85°C
Mechanical Life: 3,000 cycles
DIP SWITCH ELECTRICAL
Electrical Life: 2,000 cycles per switch 24VDC, 25mA
Non-Switching Rating: 100mA, 5000VDC.
Switching rating: 25mA, 24VDC.
Contact Resistance: 50mΩ max. at initial.
Insulation Resistance: (at 500VDC)1000mΩ min after life test
Dielectric Strength: 500VAC/1minute
dip switch
Many different kinds of dip switches, pls contact us for more detail information.
- Place of Origin:
- China
- Brand:
- Eker
- Packing:
- tube or reel
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 5-10
- Min Order Quantity:
- 1000 pcs
- Standard / Certificates:
- ROHS
